Dell Pro Max Micro FCM2250 – RTX A1000, Core Ultra 7 265, 32 GB, 1 TB
Dell
Dell Pro Max Micro FCM2250 – RTX A1000, Core Ultra 7 265, 32 GB, 1 TB
- Processor Intel Core Ultra 7 265
- Graphics NVIDIA RTX A1000 8 GB GDDR6
- Memory 32 GB DDR5-5600 non-ECC
- Storage 1 TB M.2 2280 PCIe 4.0 NVMe SSD
The Dell Pro Max Micro FCM2250 is a micro PC, 7.9 cm wide, with an Intel Core Ultra 7 265, an NVIDIA RTX A1000 with 8 GB of GDDR6, 32 GB of DDR5-5600 and a 1 TB NVMe SSD, running Windows 11 Pro.
- Ships across the EU
- Secure payment
In the box
- Dell Pro Max Micro FCM2250 (RTX A1000, Core Ultra 7 265, 32 GB, 1 TB, G69HK)
- 280 W AC adapter
- AC power cable
Shipping
We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.
Manufacturer and safety
- Brand
- Dell
Manufacturer and safety details for this product are available on request.
Highlights
What's inside.
The specs that decide what you can run, straight from the manufacturer's data sheet.
- 01NVIDIA RTX A1000, 8 GBProfessional NVIDIA RTX graphics with 8 GB of GDDR6 and four mini-DisplayPort outputs.
- 02Core Ultra 7 265, 20 cores8 performance and 12 efficient cores, boost up to 5.3 GHz, 30 MB cache and an Intel AI Boost NPU of up to 13 TOPS.
- 0332 GB DDR5, 1 TB SSDDDR5-5600 in one of two SO-DIMM slots (up to 64 GB) and a 1 TB PCIe 4.0 NVMe SSD.
- 04206 x 79.3 x 178 mmA 1 kg micro chassis for horizontal or vertical placement, with a 280 W external adapter.
In practice
Built for the work.
Use case
Professional RTX graphics in a micro chassis

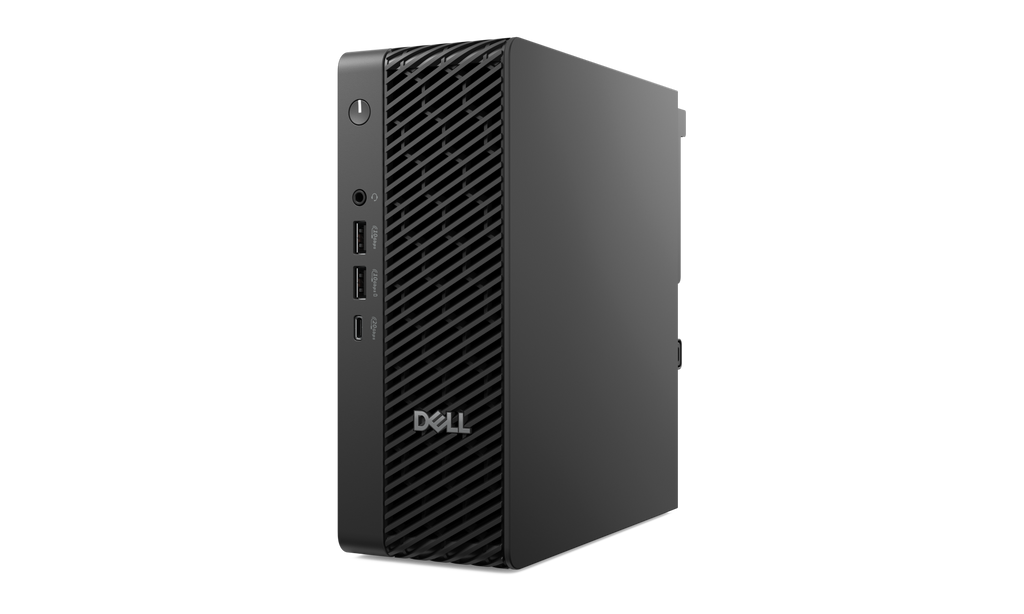

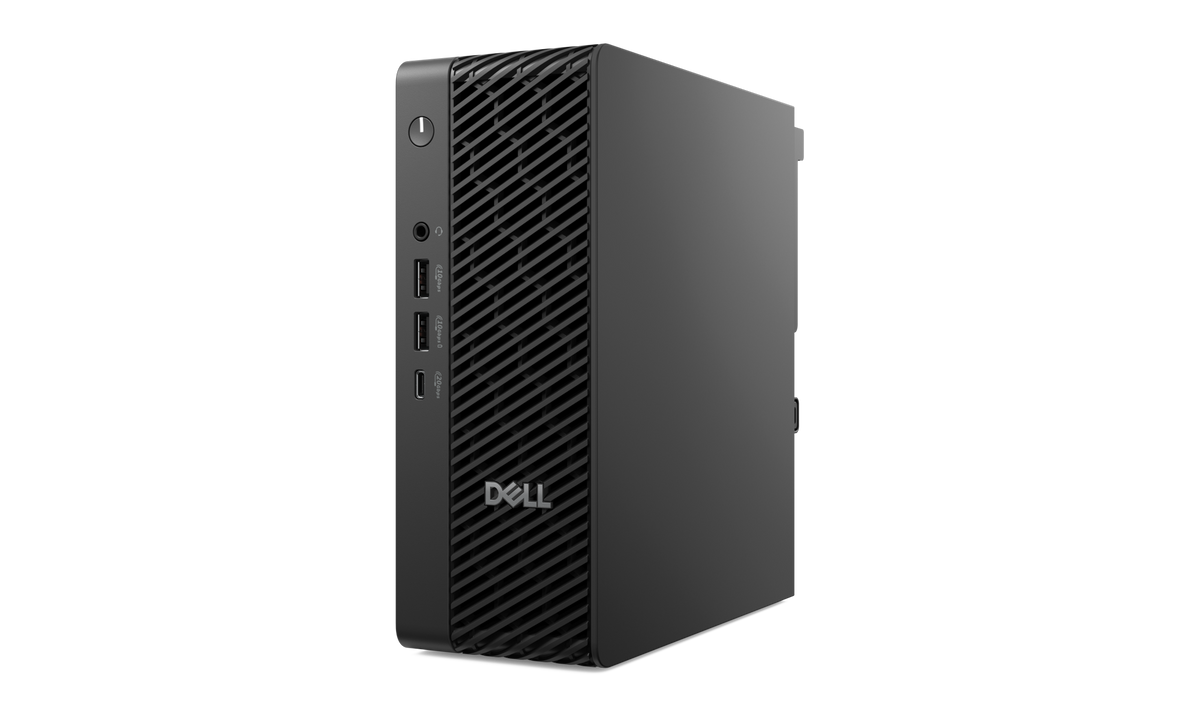

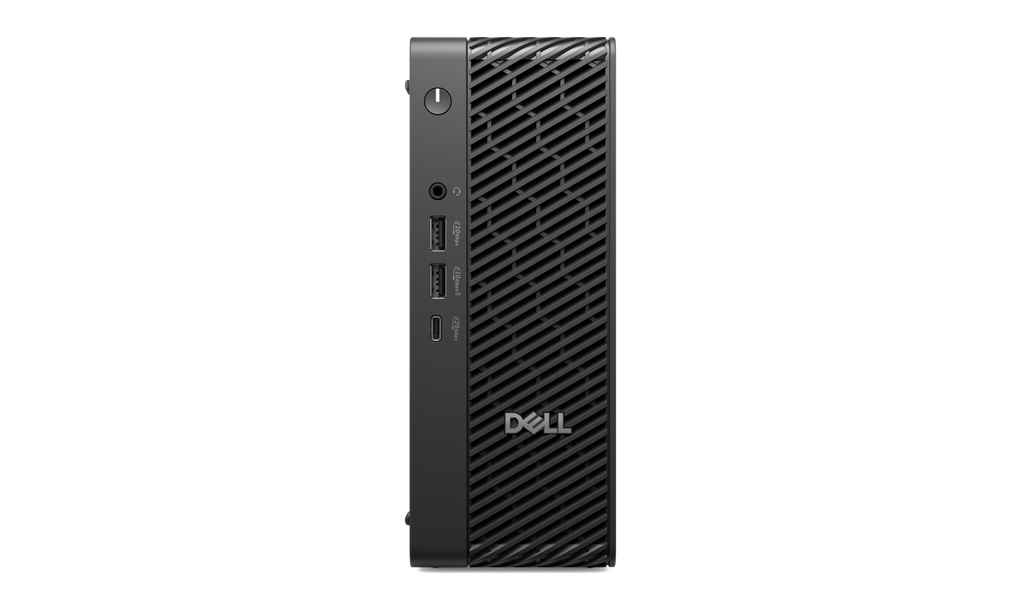

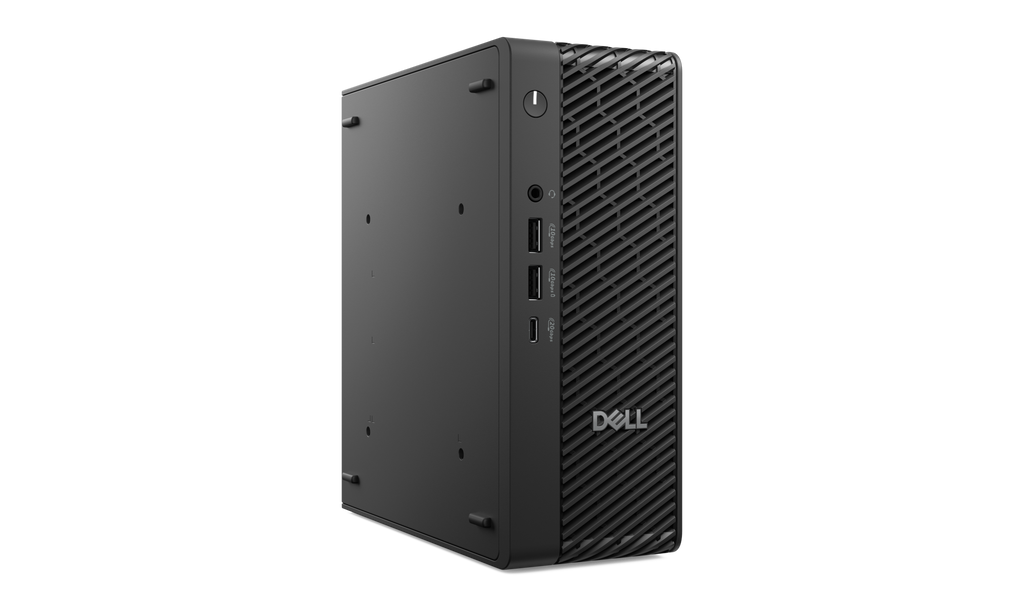

At 206 x 79.3 x 178 mm, the Pro Max Micro fits an NVIDIA RTX A1000 and a 20-core Intel Core Ultra 7 265 into a chassis that stands upright or lies flat beside a monitor.
Integration
Seven display outputs, Wi-Fi 7 and USB-C 20 Gbps

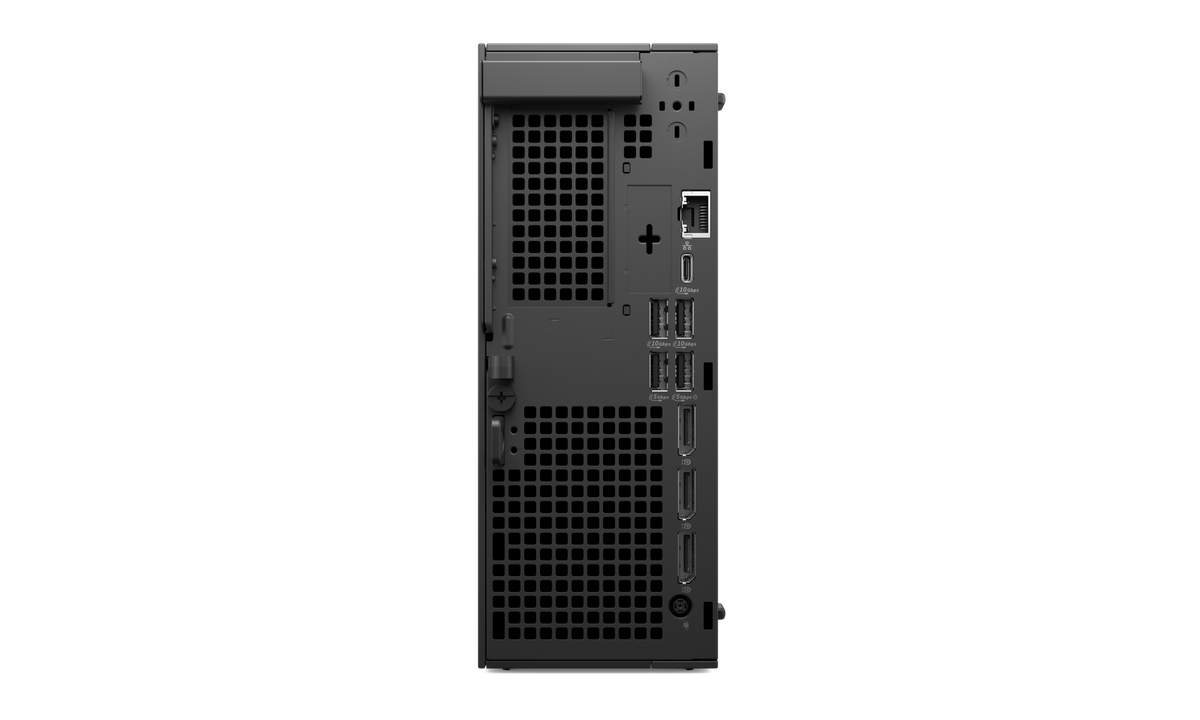

The RTX A1000 has four mini-DisplayPort outputs next to the system's three DisplayPort 1.4a ports. Connectivity includes USB-C at 20 Gbps and 10 Gbps, six USB-A ports, Gigabit Ethernet, Intel Wi-Fi 7 BE200 and Bluetooth.
Specifications
Every detail, on paper.
Part number G69HK
01Technical specifications
- EAN
- 5397184937006
- Processor
- Intel Core Ultra 7 265 (Series 2), 20 cores (8 P-cores + 12 E-cores) / 20 threads, P-cores 2.4 to 5.2 GHz, E-cores 1.8 to 4.6 GHz, boost up to 5.3 GHz, 30 MB Smart Cache, 65 W base / 182 W max. turbo power
- NPU
- Intel AI Boost, up to 13 TOPS (up to 33 TOPS total processor performance)
- Discrete graphics
- NVIDIA RTX A1000 8 GB GDDR6
- GPU outputs
- 4x mini-DisplayPort
- Integrated graphics
- Intel Graphics
- Memory
- 32 GB DDR5-5600 non-ECC (1x 32 GB)
- Memory slots
- 2x SO-DIMM, up to 64 GB
- Storage
- 1 TB M.2 2280 PCIe 4.0 NVMe SSD (TLC)
- Expansion slots
- 2x PCIe 4.0 x8
- Ports
- 1x USB-C 20 Gbps (USB 3.2 Gen 2x2)
1x USB-C 10 Gbps (USB 3.2 Gen 2)
4x USB-A 10 Gbps (USB 3.2 Gen 2)
2x USB-A 5 Gbps (USB 3.2 Gen 1)
3x DisplayPort 1.4a
1x RJ-45 Gigabit Ethernet
1x headphone/microphone combo jack - Networking
- Intel I219-LM, Gigabit Ethernet
- Wireless
- Intel Wi-Fi 7 BE200, Bluetooth
- Audio
- Realtek ALC3204, High Definition Audio
- Security and management
- TPM 2.0, cable lock slot, Intel vPro eligible, Intel AMT
- Power supply
- 280 W external AC adapter, 7.4 mm barrel, 100-240 V, 50/60 Hz
- Operating system
- Windows 11 Pro 64-bit
- Placement
- Horizontal or vertical
- Dimensions (H x W x D)
- 206 x 79.3 x 178 mm
- Weight
- 1 kg
- Operating temperature
- 0 to 35 °C
- Certifications
- ENERGY STAR, TCO
