Lenovo 03NV640 – NVIDIA MCA7J60-N005 NDR 800G to 2x 400G OSFP Active Splitter, 5 m

€2.885,00

Taxes included. Shipping calculated at checkout.

Connectivity 800G OSFP to 2x 400G OSFP
Details 5 m active copper

The Lenovo 03NV640 is the Lenovo-supplied NVIDIA MCA7J60-N005, a 5 m active copper splitter that turns one twin-port NDR OSFP 800G port into two 400G OSFP links. It serves longer switch-to-server runs from a Quantum-2 QM9700 where a passive MCP7Y00 splitter is too short.

Out of stock

Ships across the EU
Secure payment

Lenovo 03NV640 (NVIDIA MCA7J60-N005) NDR 800G to 2x 400G OSFP active splitter cable, 5 m

We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.

Brand: Lenovo

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

012x 400G NDR from one cageFeeds two servers at 400G from a single 800G twin-port OSFP cage on the switch.
025 m active copper reachActive copper extends the split link to 5 m for servers further from the switch.
03OSFP server connectorsFits ConnectX-7 MCX75310AAS-NEAT 400G NDR OSFP adapters directly.
04Lenovo part 03NV640Lenovo-supplied equivalent of NVIDIA MCA7J60-N005 for Lenovo-sourced builds.

In practice

Built for the work.

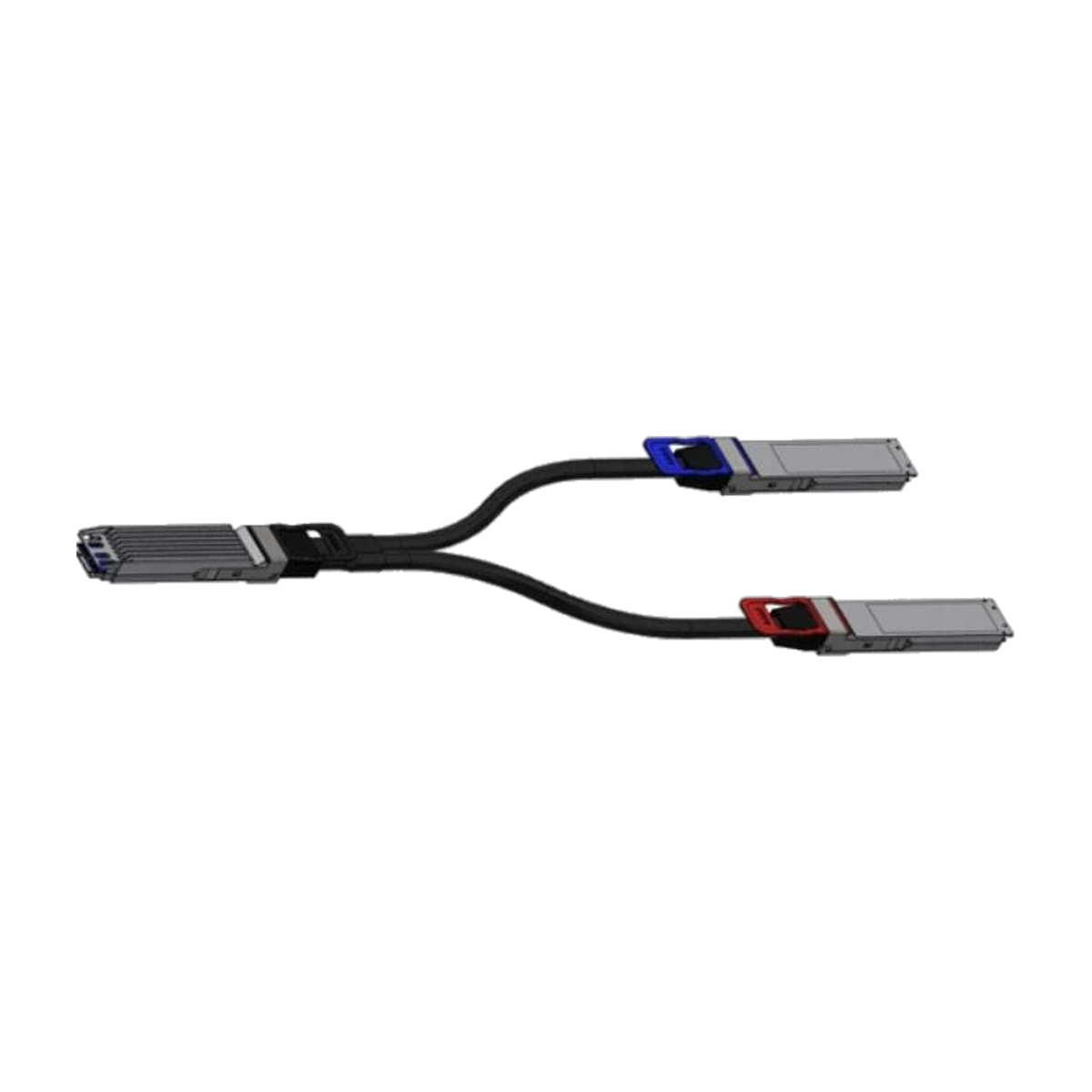

NVIDIA MCA7J60 active copper splitter: twin-port OSFP head splitting into two flat-top OSFP ends

Use case

Longer switch-to-server NDR runs

Use the 5 m 03NV640 to link a QM9700 to two GPU servers fitted with ConnectX-7 MCX75310AAS-NEAT adapters when they sit further from the switch. It keeps the run on copper where a passive MCP7Y00 splitter will not reach.

Mechanical drawing of the MCA7J60 splitter: twin-port OSFP head to two OSFP ends with dimensions

Integration

800G OSFP to 2x 400G OSFP splitter

A twin-port OSFP plugs into the switch and splits into two OSFP connectors, each carrying 400G NDR for 800 Gbit/s total over 5 m of active copper (ACC). Lenovo 03NV640 is equivalent to NVIDIA MCA7J60-N005.

Video

See it in action.

Performance

The numbers, from the source.

Use case: 4-5 m active copper splitters connect a Quantum-2/Spectrum-4 twin-port OSFP switch to two 400G (MCA7J60) or four 200G ConnectX-7 OSFP adapters. Source: NVIDIA.
