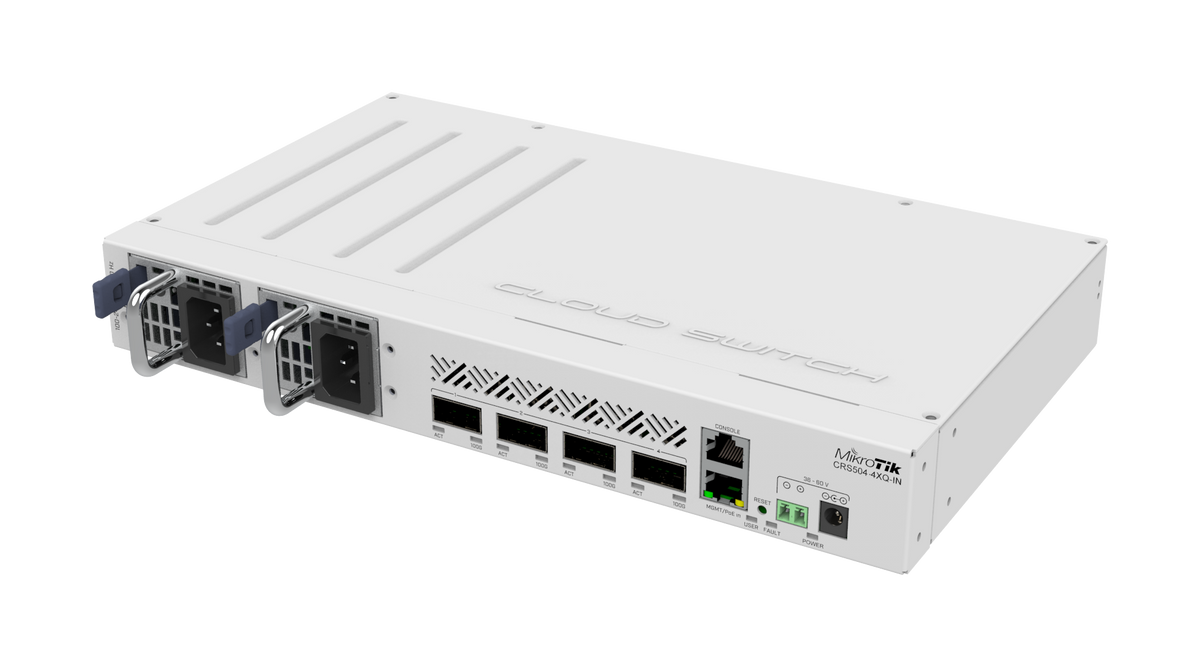

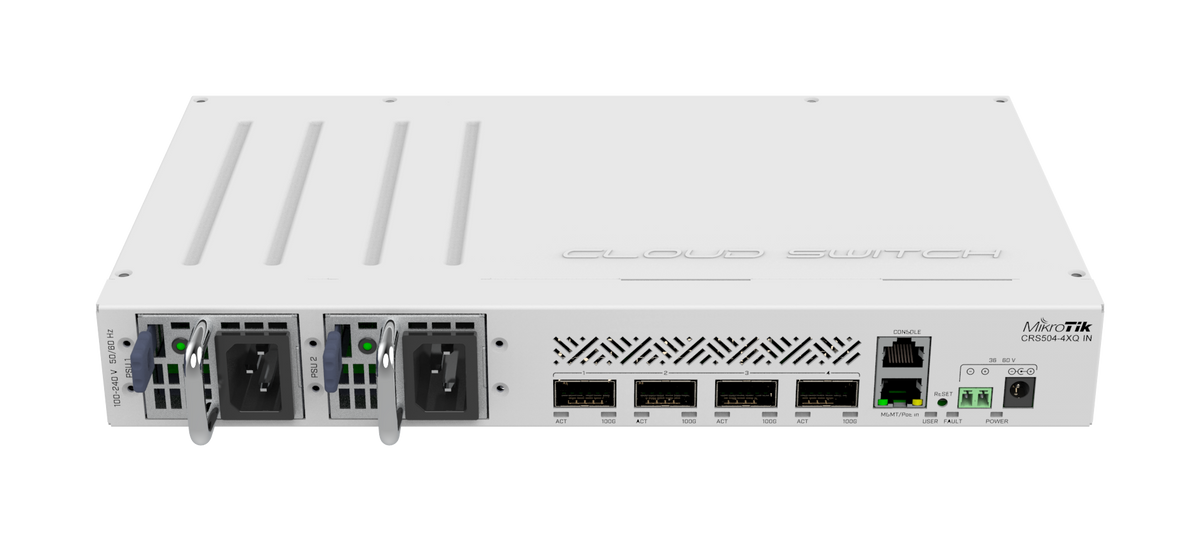

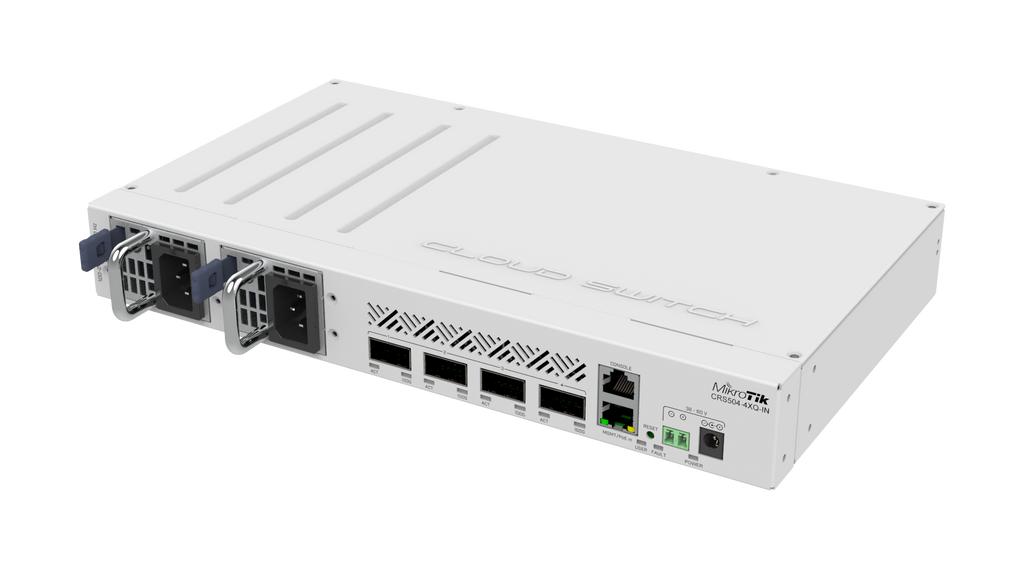

MikroTik CRS504-4XQ-IN – 4x 100G QSFP28 Switch
MikroTik
MikroTik CRS504-4XQ-IN – 4x 100G QSFP28 Switch
- Connectivity 4x 100G QSFP28
- Performance 394.9 Gbps non-blocking Layer 2 throughput
- Power Dual hot-swap PSU slots
- Chipset Marvell 98DX4310 switch chip
The MikroTik CRS504-4XQ-IN is MikroTik's most affordable 100G switch, with four 100G QSFP28 ports for linking two to four workstations or servers. Each port can split into 4x 25G with breakout cables, and dual hot-swap PSU slots accept AC or DC power.
- Ships across the EU
- Secure payment
In the box
- MikroTik CRS504-4XQ-IN 4-port 100G QSFP28 switch
Shipping
We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.
Manufacturer and safety
- Brand
- MikroTik
Manufacturer and safety details for this product are available on request.
Highlights
What's inside.
The specs that decide what you can run, straight from the manufacturer's data sheet.
- 014x 100G QSFP28Four 100G ports link up to four workstations or servers directly at full speed.
- 02Breakout to 16x 25GEach port splits into 4x 25G with breakout cables, so the switch can serve up to 16 25G devices.
- 03394.9 Gbps Layer 2Non-blocking throughput means all four 100G ports can run at once without contention.
- 04AC or DC dual PSU slotsHot-swap slots take 100-240 V AC or 36-57 V DC supplies for redundancy in a lab or rack.
In practice
Built for the work.
Use case
Entry-level 100G for small AI teams
Connect two to four GPU workstations or servers over 100G to share datasets and move checkpoints between machines quickly. At 41 W max and with rack, wall or desk mounting, it fits a small office lab as easily as a server rack.
Integration
Rack, wall or desk mount, AC or DC
Interfaces are 4x 100G QSFP28 plus a 10/100 Ethernet management port, switched by a Marvell 98DX4310 chip running RouterOS v7. Dual hot-swap PSU slots take 100-240 V AC or 36-57 V DC. The 320 x 185 x 44 mm chassis draws 41 W max and has 2 fans.
Video
See it in action.
Performance
The numbers, from the source.
Charts and diagrams published by the manufacturer.
-

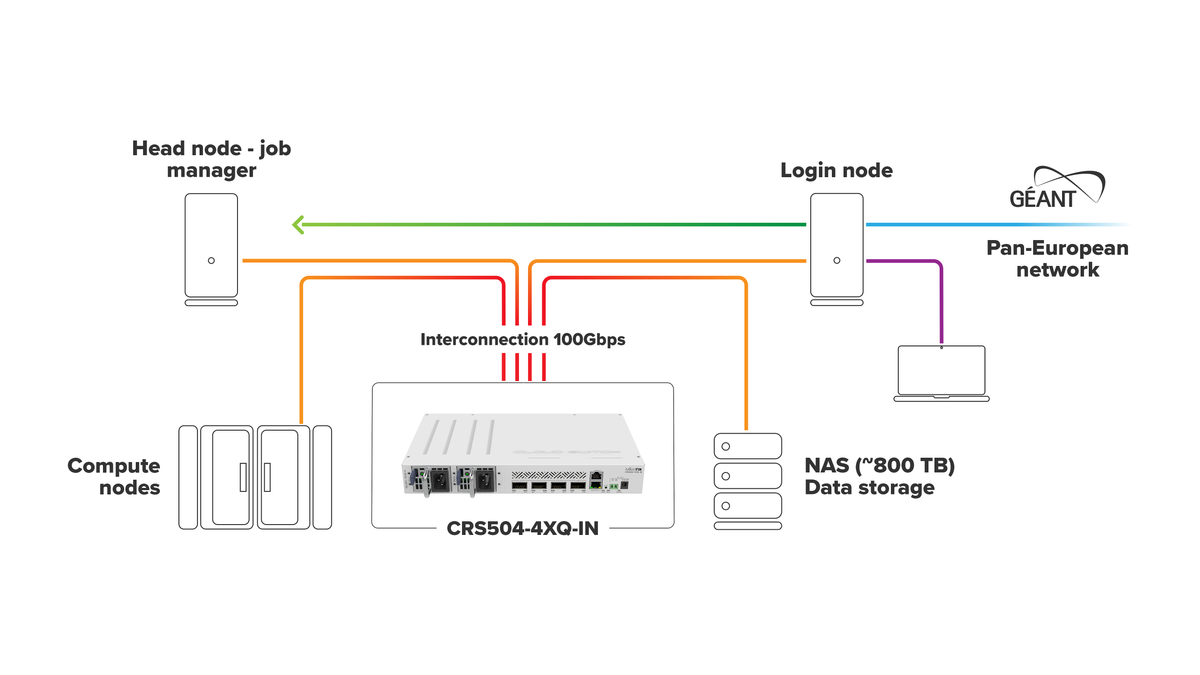

Topology: CRS504-4XQ-IN as the 100 Gbps interconnect of the Genomics Data Network HPC cluster, linking compute nodes, head and login nodes and an ~800 TB NAS. Source: MikroTik. -

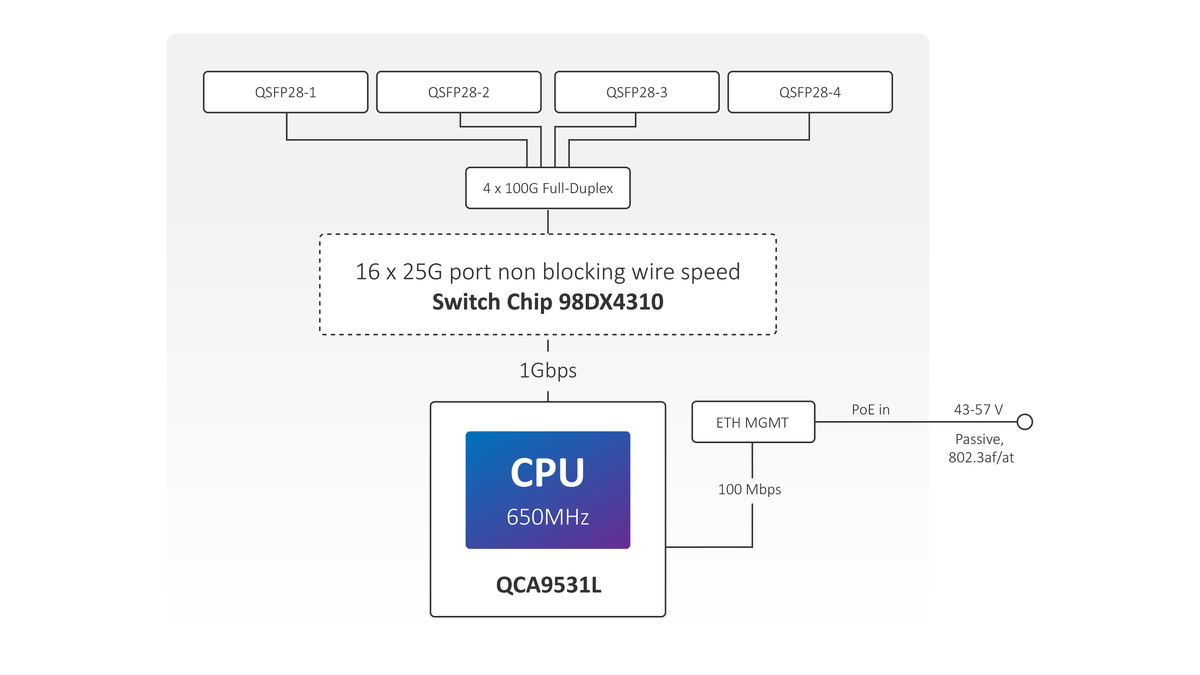

Block diagram: 4x 100G full-duplex QSFP28 into a non-blocking wire-speed Marvell 98DX4310 switch chip (16x 25G), PoE-in 43-57 V. Source: MikroTik.
Specifications
Every detail, on paper.
01Key specifications
- Connectivity
- 4x 100G QSFP28, 1x 10/100 Ethernet management port
- Chipset
- Marvell 98DX4310 switch chip
- Performance
- 394.9 Gbps non-blocking Layer 2 throughput (1518-byte packets)
- Power
- Dual hot-swap PSU slots, AC 100-240 V or DC 36-57 V; 41 W max, 2 fans
- Software
- RouterOS v7; 320 x 185 x 44 mm; rack, wall or desk mount
