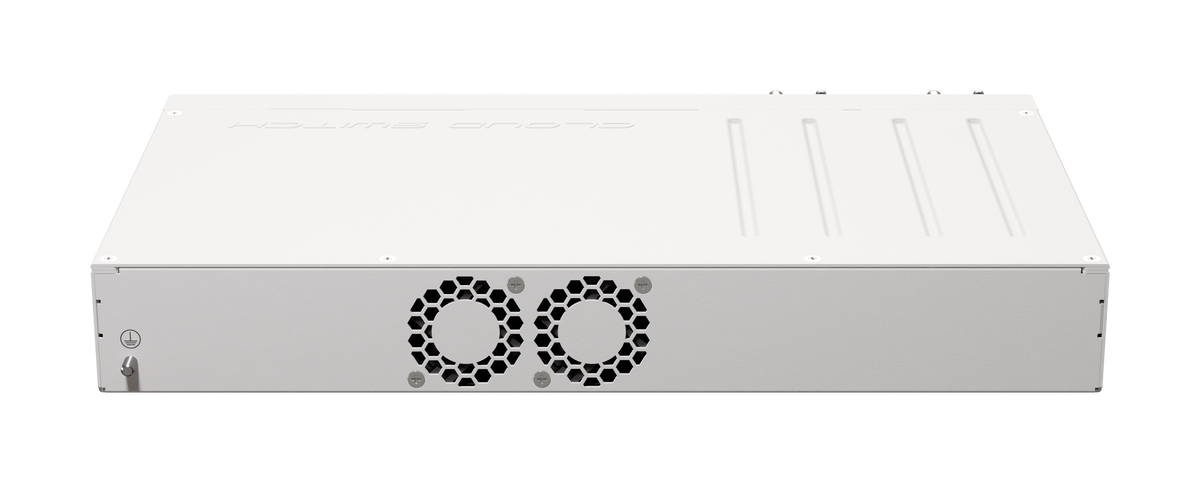

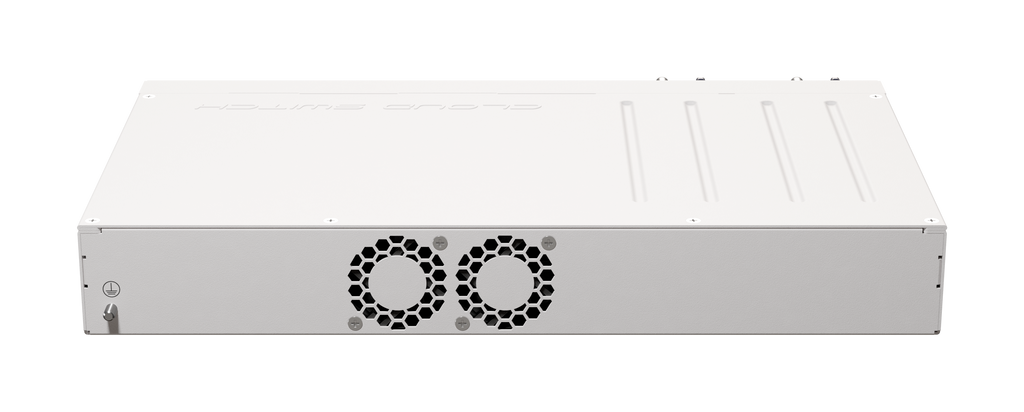

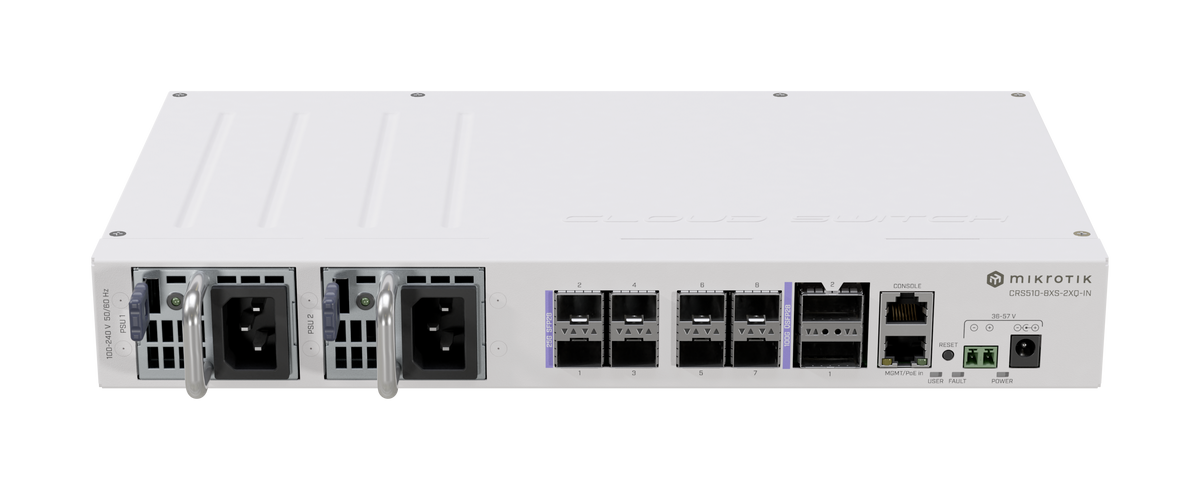

MikroTik CRS510-8XS-2XQ-IN – 8x 25G SFP28 + 2x 100G QSFP28 Switch
MikroTik
MikroTik CRS510-8XS-2XQ-IN – 8x 25G SFP28 + 2x 100G QSFP28 Switch
- Connectivity 8x 25G SFP28
- Power Dual hot-swap power supplies
- Chipset Marvell Prestera 98DX4310 switch chip
- Software RouterOS v7
The MikroTik CRS510-8XS-2XQ-IN is a compact switch with eight 25G ports and two 100G ports. It suits a small desk-side AI lab that needs fast links between a few workstations, servers and storage, with dual hot-swap power and a low 45 W maximum draw.
- Ships across the EU
- Secure payment
In the box
- MikroTik CRS510-8XS-2XQ-IN 8x 25G SFP28 + 2x 100G QSFP28 switch
- 2× IEC power cord
- Rack ears
Shipping
We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.
Manufacturer and safety
- Brand
- MikroTik
Manufacturer and safety details for this product are available on request.
Highlights
What's inside.
The specs that decide what you can run, straight from the manufacturer's data sheet.
- 018x 25G SFP28Eight 25G ports connect workstations and servers well beyond the speed of standard 10G networking.
- 022x 100G QSFP28Two 100G ports link a GPU server or NAS, or uplink the lab to a larger network.
- 0345 W max power drawLow consumption, 27 W without attachments, keeps running costs down in an office or lab.
- 04Dual hot-swap PSUsTwo hot-swap power supplies keep the lab network up if one fails or needs replacing.
In practice
Built for the work.
Use case
Fast networking for a desk-side AI lab
Connect a handful of GPU workstations, a server and shared NVMe storage over 25G and 100G to move datasets and model checkpoints quickly. The compact chassis fits a small lab, and the included rack ears let it move into a rack later.
Integration
Compact switch with rack ears included
Interfaces are 8x 25G SFP28, 2x 100G QSFP28, a 10/100 Ethernet port and an RJ45 console. A Marvell Prestera 98DX4310 chip handles switching under RouterOS v7 (licence level 5). Dual hot-swap power supplies and 2 fans are fitted; two IEC power cords and rack ears are included.
Video
See it in action.
Performance
The numbers, from the source.
Charts and diagrams published by the manufacturer.
-

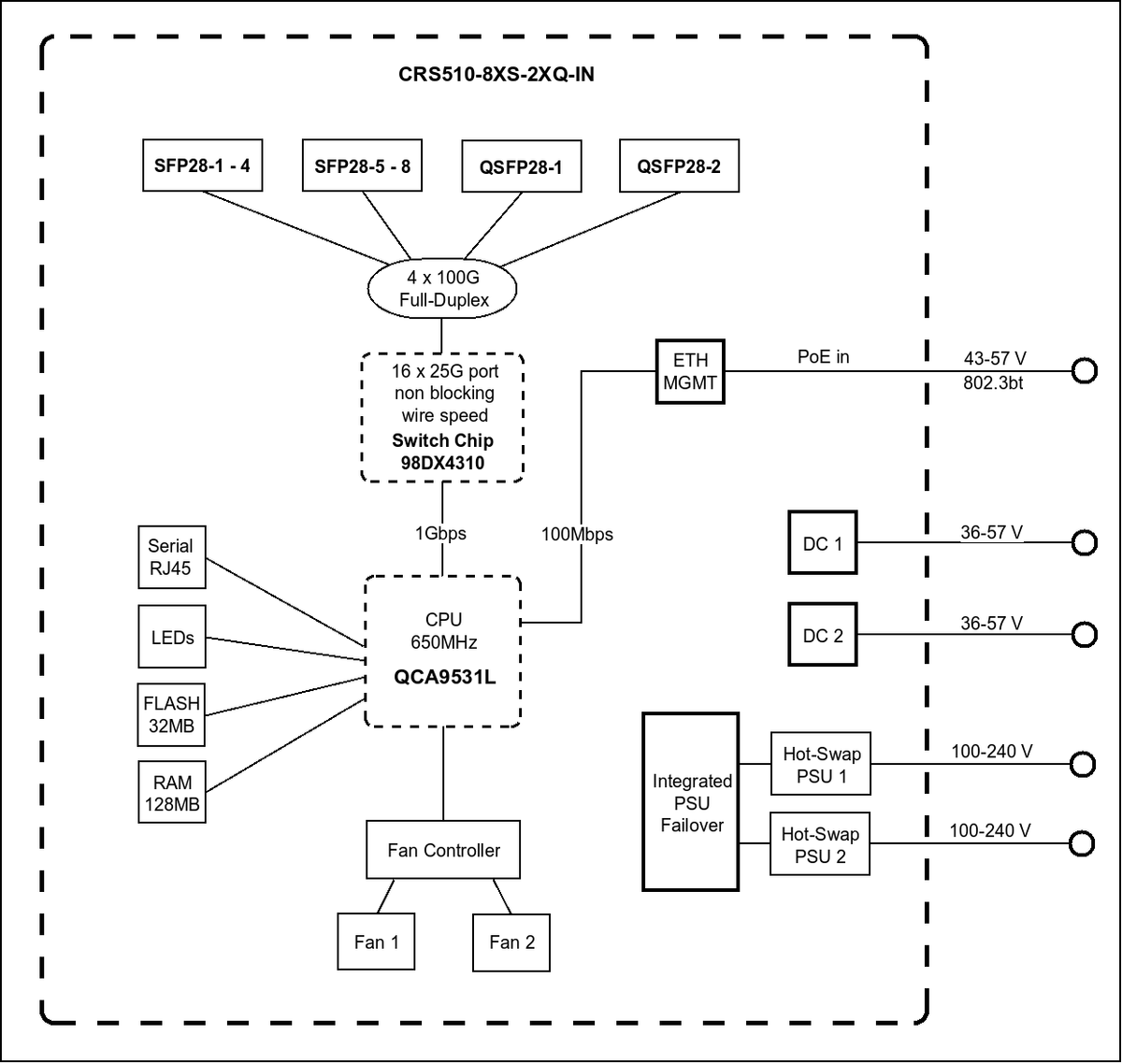

Block diagram: 8x 25G SFP28 and 2x 100G QSFP28 on a non-blocking wire-speed Marvell 98DX4310 switch chip, redundant hot-swap PSUs plus PoE-in and DC inputs. Source: MikroTik.
Specifications
Every detail, on paper.
01Key specifications
- Connectivity
- 8x 25G SFP28, 2x 100G QSFP28, 1x 10/100 Ethernet, 1x RJ45 console
- Chipset
- Marvell Prestera 98DX4310 switch chip
- Power
- Dual hot-swap power supplies; 45 W max (27 W without attachments), 2 fans
- Software
- RouterOS v7 (licence level 5)
- Power
- Includes 2x IEC power cords and rack ears
