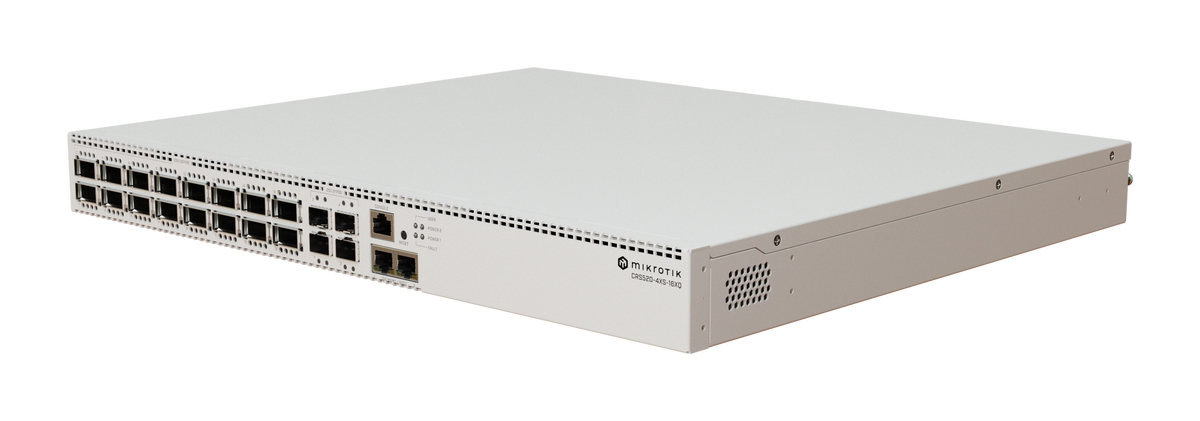

MikroTik CRS520-4XS-16XQ-RM – 16x 100G QSFP28 Switch

€2.900,00

Taxes included. Shipping calculated at checkout.

Connectivity 16x 100G QSFP28
Performance Up to 1.7 Tbps non-blocking Layer 2 throughput
Power 2 hot-swap power supplies
Chipset Marvell 98CX8410 switch chip

The MikroTik CRS520-4XS-16XQ-RM is MikroTik's largest 100G switch, with 16 ports at 100G in 1U. It is built for AI labs linking workstations, GPU servers and NVMe storage, offering up to 1.7 Tbps non-blocking Layer 2 throughput and hot-swap power and cooling.

10 left

Ships across the EU
Secure payment

MikroTik CRS520-4XS-16XQ-RM 16-port 100G QSFP28 switch

We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.

Brand: MikroTik

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

0116x 100G QSFP28Sixteen 100G ports connect workstations, GPU servers and storage nodes at full speed.
024x 25G SFP28 + 2x 10GExtra 25G and 10G ports handle uplinks, management or slower devices without adapters.
031.7 Tbps Layer 2Non-blocking throughput keeps traffic flowing when every 100G port is busy.

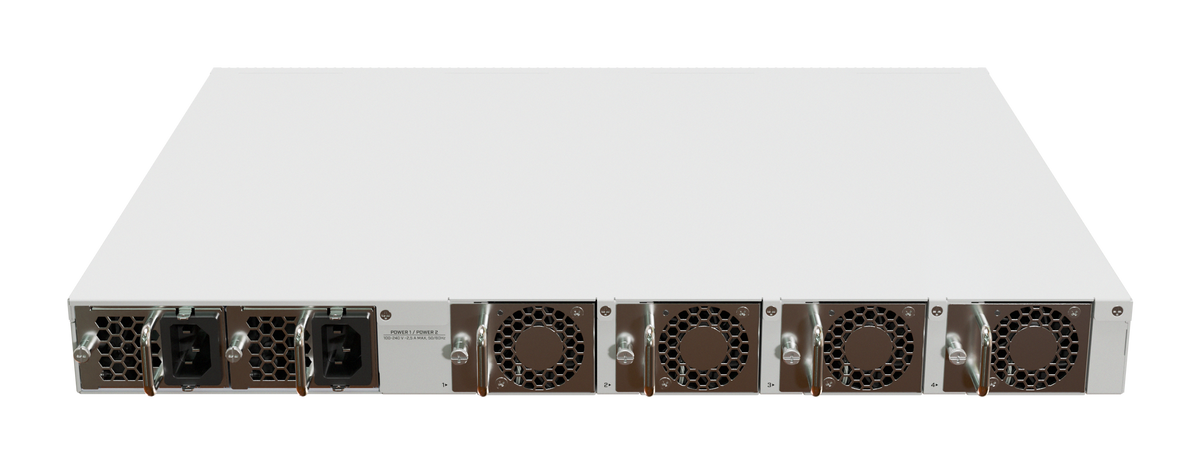

04Hot-swap PSUs and fansTwo hot-swap power supplies and four hot-swap fans allow servicing without downtime.

In practice

Built for the work.

Use case

Connect a 100G AI lab in one rack unit

Link GPU servers, workstations and NVMe storage over 100G to move datasets and checkpoints quickly between nodes. RouterOS v7 with licence level 5 provides switching and routing in a single 1U unit, keeping a small AI lab simple to run.

Integration

Marvell switching with ARM control plane

Ports comprise 16x 100G QSFP28, 4x 25G SFP28, 2x 10G Ethernet and an RJ45 serial console. A Marvell 98CX8410 switch chip is paired with a quad-core 2 GHz ARM CPU and 4 GB DDR4 RAM. Power draw is 150 W max (220 W with both PSUs) in a 1U rack-mount chassis.

Video

See it in action.

Performance

The numbers, from the source.

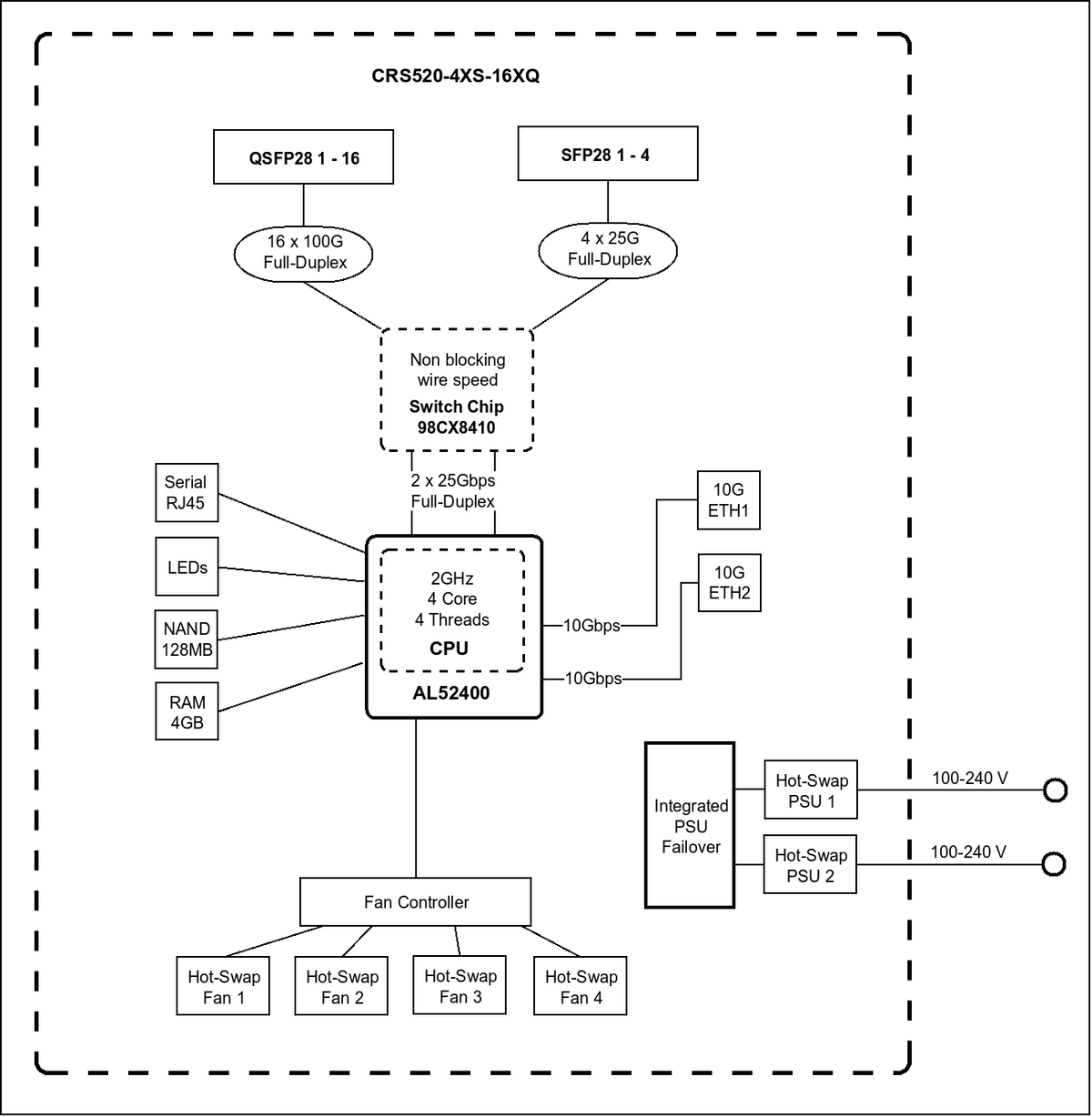

Block diagram: 16x 100G QSFP28 and 4x 25G SFP28 on a non-blocking wire-speed Marvell 98CX8410 switch chip, quad-core 2 GHz CPU linked at 2x 25 Gbps, dual hot-swap PSUs and 4 fans. Source: MikroTik.

Specifications

Every detail, on paper.

01Key specifications

Connectivity: 16x 100G QSFP28, 4x 25G SFP28, 2x 10G Ethernet, 1x RJ45 serial console
Chipset: Marvell 98CX8410 switch chip; quad-core 2 GHz ARM CPU, 4 GB DDR4 RAM
Performance: Up to 1.7 Tbps non-blocking Layer 2 throughput (1518-byte packets)
Power: 2 hot-swap power supplies, 4 hot-swap fans; 150 W max (220 W with both PSUs)
Software: RouterOS v7 (licence level 5), 1U rack-mount
