NVIDIA ConnectX-7 MCX713104AC-ADAT – 4x 25/50GbE SFP56, PCIe 4.0, Crypto

€1.605,00

Taxes included. Shipping calculated at checkout.

Connectivity 4x SFP56
Interface PCIe 4.0 x16
Power 15.8 W typical power

NVIDIA's ConnectX-7 MCX713104AC-ADAT puts four 25/50GbE SFP56 ports on a half-height PCIe 4.0 x16 card, with crypto and Secure Boot enabled. It suits AI lab clusters, storage networks and servers that need RoCE, NVMe-oF and inline encryption at 25 or 50 Gb/s.

Out of stock

Ships across the EU
Secure payment

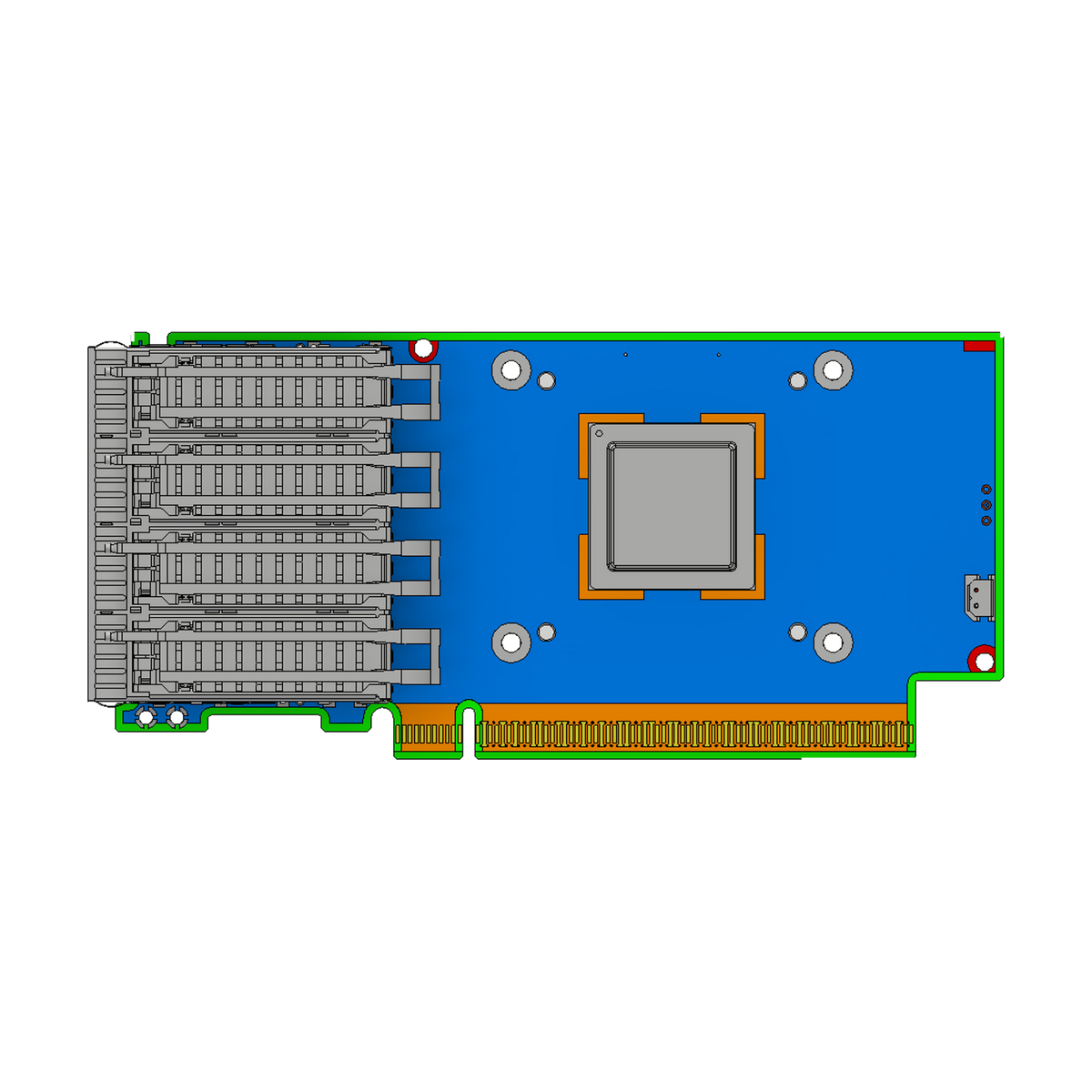

NVIDIA ConnectX-7 adapter card (900-9X7AO-00C3-STZ) with tall bracket fitted
Short bracket

Brand: NVIDIA

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

014x 25/50GbE SFP56Four ports on one half-height card for clusters, storage and uplinks.
02Crypto enabledInline IPsec, TLS and MACsec encryption offloads in hardware, per NVIDIA's datasheet.
03RoCE and GPUDirect StorageRDMA over Converged Ethernet and NVMe-oF acceleration over RoCE and TCP.
0415.8 W typicalLow power with passive cables; Secure Boot with a hardware root-of-trust.

In practice

Built for the work.

NVIDIA video: Introduction to ConnectX Network Interface Cards

Use case

Accelerated networking and security

NVIDIA ASAP² offloads software-defined networking, while ConnectX-7 accelerates RoCE, NVMe-oF and GPUDirect Storage and adds PTP timing, so networking, storage and security work stays off the CPU.

Integration

Half-height PCIe 4.0 x16 card

The card measures 68.90 x 143.50 mm and ships with the tall bracket fitted and a short bracket in the box. NVIDIA rates it at 15.8 W typical with passive cables. Install it in a slot that supplies the power and airflow NVIDIA specifies.

Video

See it in action.

Specifications

Every detail, on paper.

01Technical specifications

NVIDIA OPN: MCX713104AC-ADAT
EAN: 7290110492663
Product: NVIDIA ConnectX-7 HHHL Ethernet adapter card
Ports: 4x SFP56
Ethernet: 50 / 25GbE
Ethernet protocols: 50GBASE-CR, 50GBASE-R2, 50GAUI-2/-1 C2M, 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 25GAUI C2M, 10GBASE-R, 1000BASE-CX and more (full list in NVIDIA's user manual)
Host interface: PCIe Gen 4.0 x16 (16 GT/s), Gen 3.0 compatible
Security: Secure Boot enabled, crypto enabled
Typical power: 15.8 W with passive cables (PCIe Gen 4.0 x16)
Voltage: 12 V, 3.3 V AUX
Form factor: PCIe half height, half length
Dimensions: 68.90 x 143.50 mm (2.71 x 5.64 in)
Brackets: Tall bracket fitted, short bracket included
Operating temperature: 0 °C to 55 °C
Operating humidity: 10% to 85% relative humidity
Drivers: In-box drivers for Linux (RHEL, Ubuntu) and Windows; VMware ESXi (SR-IOV); Kubernetes
Regulatory: Safety: CB, cTUVus, CE. EMC: CE, FCC, VCCI, ICES, RCM, KC. RoHS compliant
In the box: Adapter card with tall bracket fitted, short bracket
