NVIDIA MCA4J80-N005 – NDR 800G Twin-Port OSFP Active Copper Cable, 5 m

€2.430,00

Taxes included. Shipping calculated at checkout.

Connectivity OSFP to OSFP
Details IB twin-port NDR

The NVIDIA MCA4J80-N005 is a 5 m twin-port NDR active copper cable running at up to 800 Gb/s, with OSFP at both ends. Built for links between Quantum-2 QM9700 switches in the next rack, it extends active copper to 5 m so longer switch-to-switch runs can stay off optics.

In stock

Ships across the EU
Secure payment

NVIDIA MCA4J80-N005 NDR 800G twin-port OSFP active copper cable, 5 m

We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.

Brand: NVIDIA

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

01800G twin-port NDROne cable carries both NDR ports of a twin-port OSFP cage at a combined 800 Gb/s.
025 m reach on copperActive signal conditioning stretches copper to 5 m for longer runs to the next rack.
03Cheaper than optical linksLower cost and lower power than an optical cable for the same switch-to-switch connection.
04LSZH jacketBlack low-smoke zero-halogen jacket suited to data-centre cabling.

In practice

Built for the work.

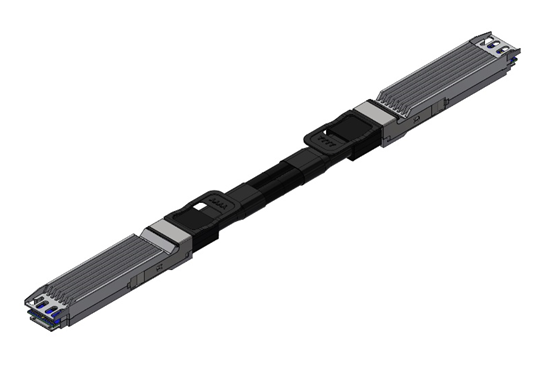

NVIDIA MCA4J80 twin-port OSFP active copper cable with finned-top connectors and pull tabs

Use case

Longer switch-to-switch runs on copper

Choose the 5 m MCA4J80-N005 when QM9700 switches in adjacent racks are too far apart for shorter cables. It keeps inter-switch links in an NDR InfiniBand fabric on copper, avoiding the extra cost and power of optical transceivers.

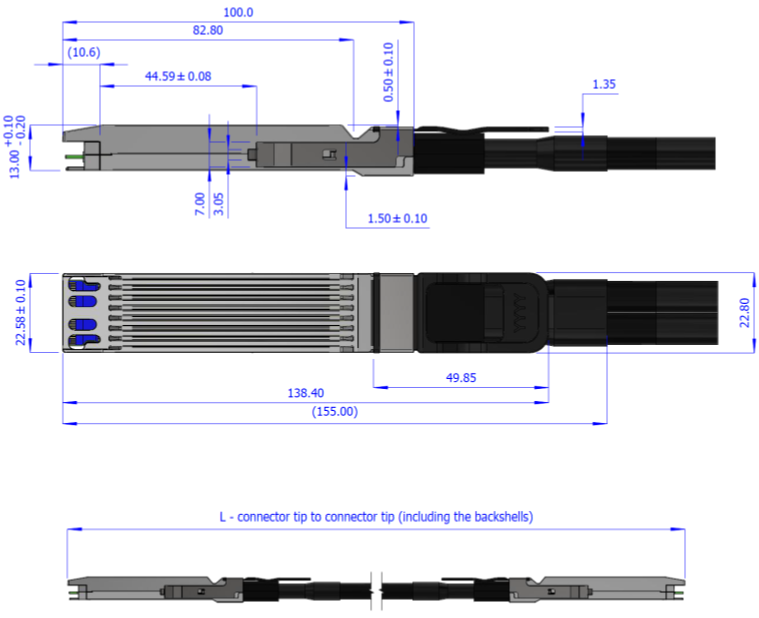

Mechanical drawing of the MCA4J80 finned twin-port OSFP connector with side and top dimensions

Integration

OSFP to OSFP active copper, 5 m

Twin-port OSFP at both ends carries InfiniBand NDR at 800 Gbit/s over 5 m of active copper (ACC). NVIDIA part MCA4J80-N005, manufacturer part 980-9I602-00N005. Black LSZH jacket with a 1-year warranty.
