NVIDIA MCP1600-E003E26 – EDR InfiniBand 100G QSFP28 Passive DAC, 3 m

€329,00

Taxes included. Shipping calculated at checkout.

Connectivity QSFP28 to QSFP28
Details IB EDR

Genuine NVIDIA MCP1600-E003E26 passive copper cable for InfiniBand EDR at up to 100 Gb/s. At 3 m with 26 AWG conductors, it reaches across a rack or to the next one, giving EDR clusters a supported, low-latency link without optics.

Out of stock

Ships across the EU
Secure payment

NVIDIA MCP1600-E003E26 EDR InfiniBand QSFP28 passive DAC cable, 3 m

We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.

Brand: NVIDIA

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

013 m, 26 AWGHeavier conductors carry EDR reliably over the full 3 m length.
02EDR at up to 100 Gb/sFull EDR bandwidth for HPC, AI training and parallel storage.
03Original NVIDIA EDR cableGenuine MCP1600-E003E26 for fully supported NVIDIA fabrics.
04LSZH jacketLow-smoke, zero-halogen jacket suited to data centre safety rules.

In practice

Built for the work.

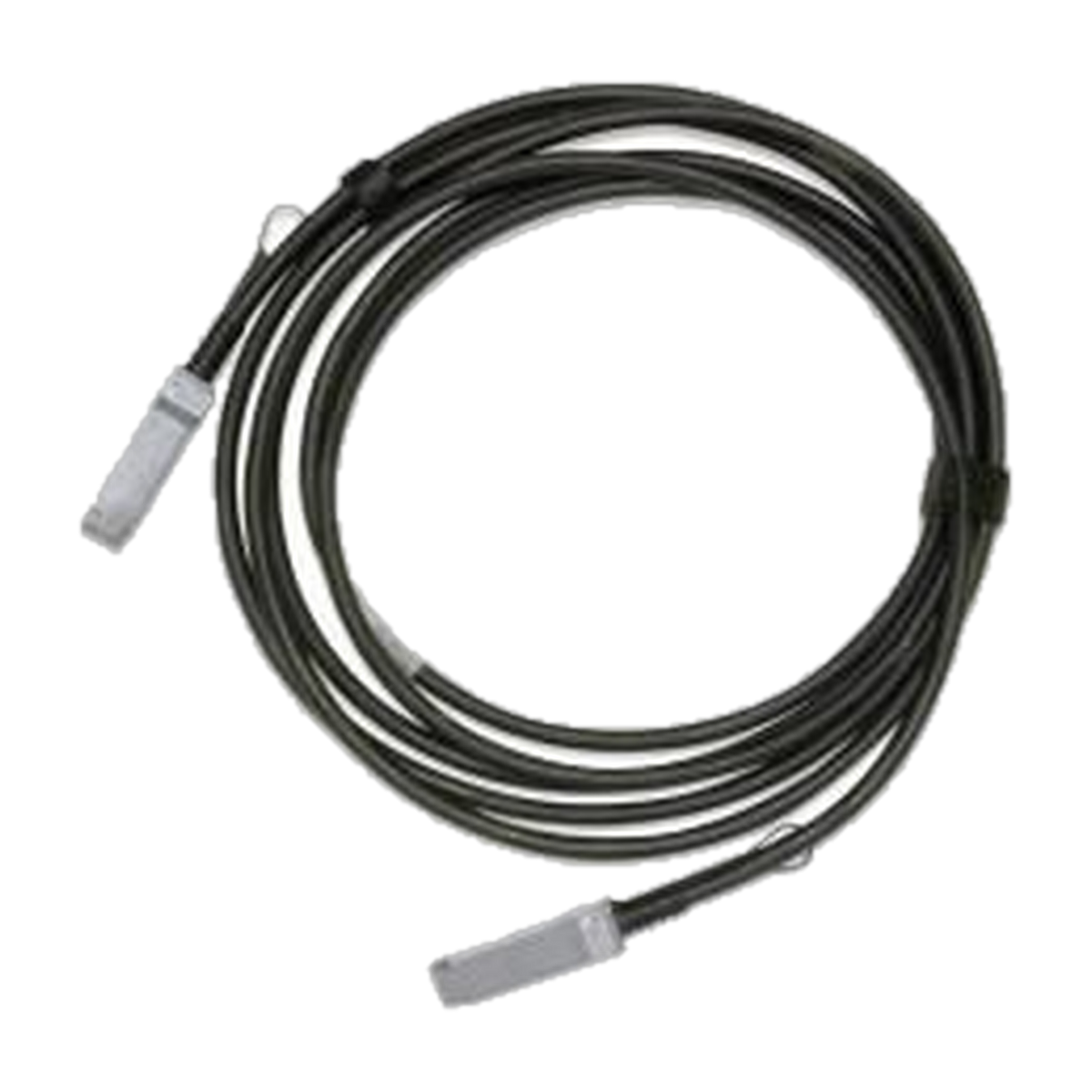

Coiled NVIDIA MCP1600 QSFP28 passive DAC with pull-tab connectors

Use case

Rack-to-rack EDR without optics

Connect servers to an EDR switch in a neighbouring rack, or run the full height of a rack, while staying on passive copper. You avoid the cost and power draw of transceivers and keep latency minimal.

Mechanical drawing of the MCP1600 QSFP28 plug and pull tab with dimensions

Integration

QSFP28 EDR for ConnectX-6 and QM8790

QSFP28 to QSFP28, InfiniBand EDR up to 100 Gbit/s, 26 AWG, LSZH jacket. Listed for ConnectX-6 VPI MCX653105A-ECAT and QM8790 ports running at EDR. NVIDIA part 980-9I62W-00E003.
