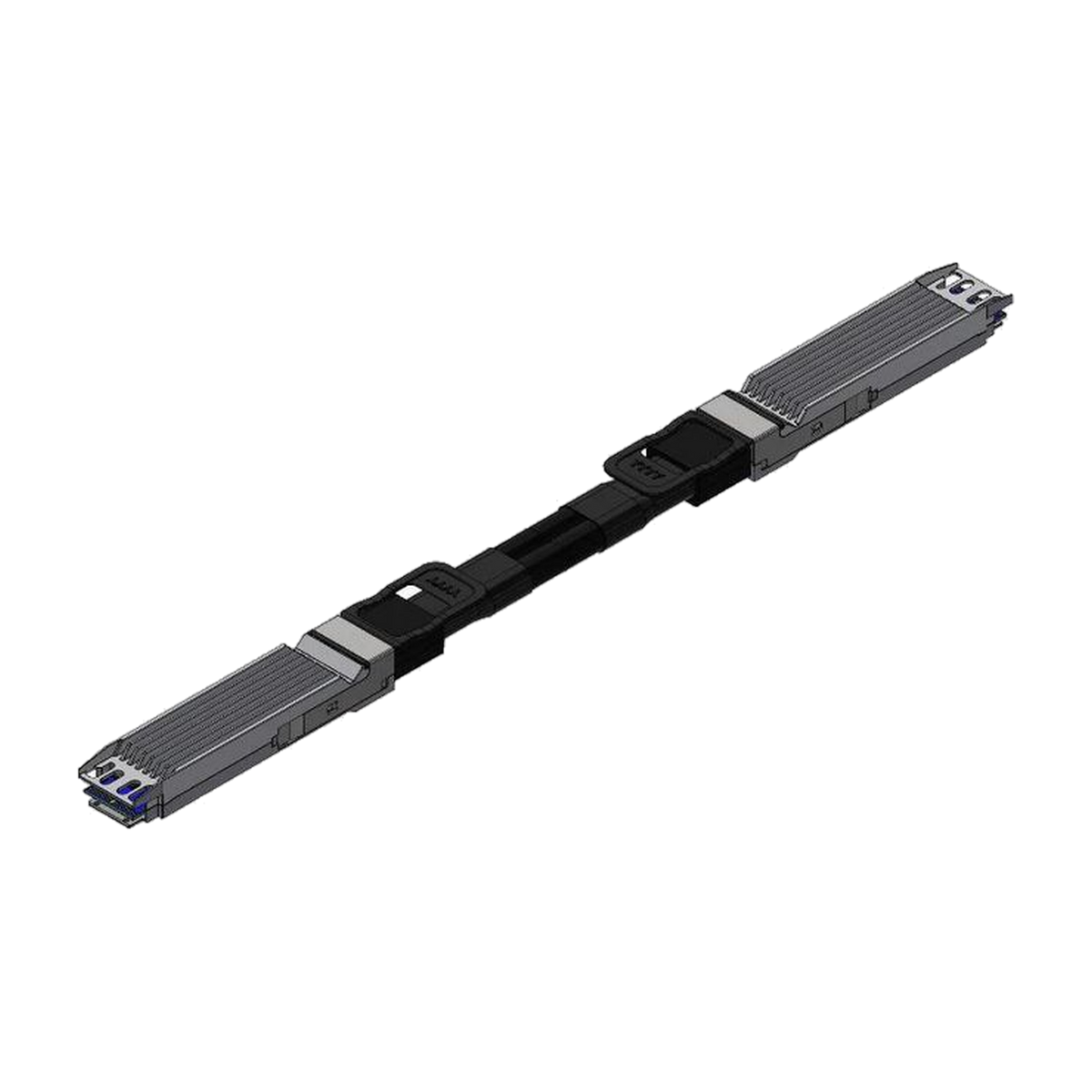

NVIDIA MCP4Y10-N001 – NDR 800G Twin-Port OSFP Passive DAC, 1 m

€1.058,00

Taxes included. Shipping calculated at checkout.

Connectivity OSFP to OSFP
Details IB twin-port NDR

The genuine NVIDIA MCP4Y10-N001 is a 1 m twin-port OSFP passive copper cable for InfiniBand NDR at up to 800 Gb/s. It links Quantum-2 QM9700 switches a little further apart in the rack, keeping the low latency and zero power draw of copper.

Out of stock

Ships across the EU
Secure payment

NVIDIA MCP4Y10-N001 NDR 800G twin-port OSFP passive DAC cable, 1 m

We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.

Brand: NVIDIA

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

011 m OSFP reachConnects QM9700 switches a few units apart rather than directly stacked.
02800 Gb/s, 2x 400G NDRTwo full NDR links in one cable for dense, high-bandwidth fabrics.
03Genuine NVIDIA MCP4Y10Original MCP4Y10-N001 for fully supported Quantum-2 deployments.
04Passive copper, LSZHNo active electronics to power or cool, with a low-smoke jacket.

In practice

Built for the work.

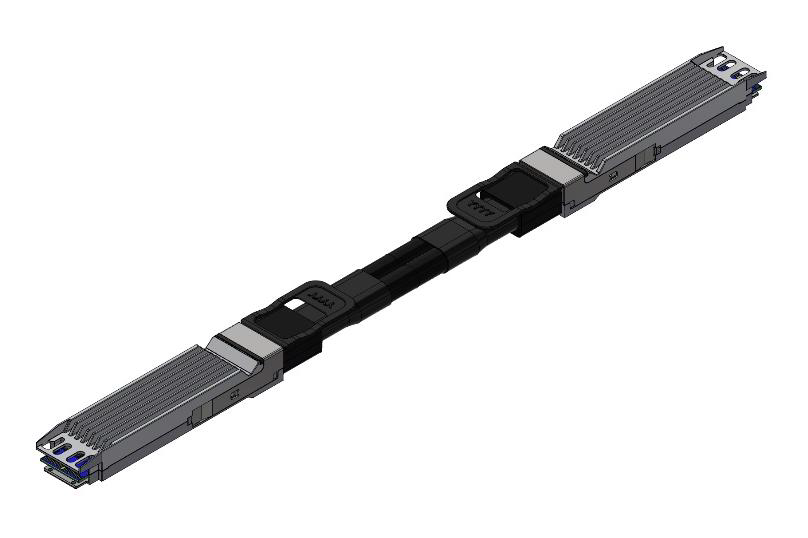

NVIDIA MCP4Y10 twin-port OSFP passive DAC with two finned-top OSFP connectors

Use case

NDR switch links with routing room

Connect Quantum-2 QM9700 switches that sit a few units apart, or route through cable management between them. The 1 m length gives that flexibility while staying on passive copper for 800G NDR.

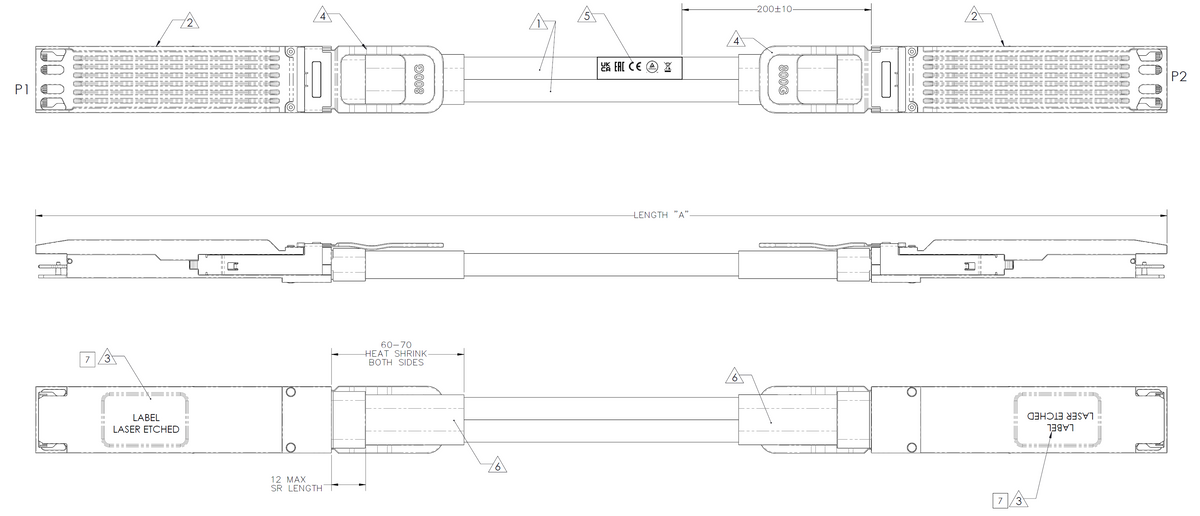

Mechanical drawing of the MCP4Y10 finned-top OSFP DAC: top and side views with length definition

Integration

OSFP finned-top, twin-port NDR

OSFP to OSFP twin-port, finned top both ends, InfiniBand NDR up to 800 Gbit/s (2x 400G), LSZH, black. Listed for NVIDIA Quantum-2 QM9700 to another QM9700. NVIDIA part 980-9IA0F-00N001.

Video

See it in action.

Performance

The numbers, from the source.

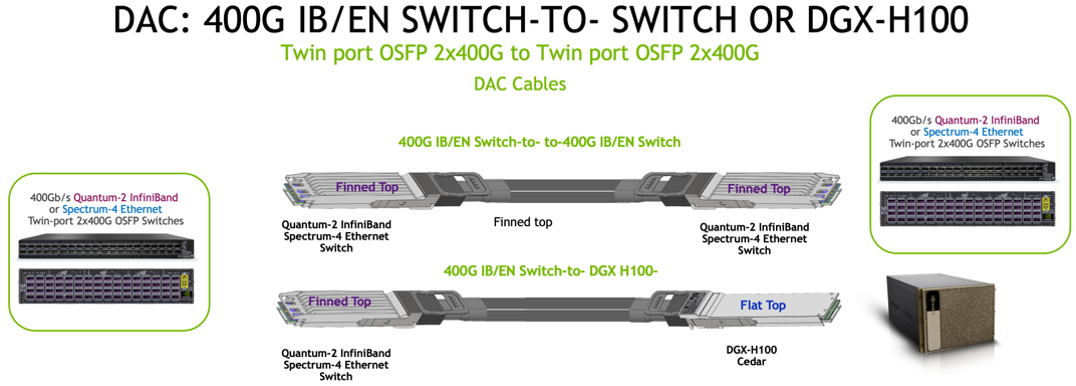

Use case: twin-port OSFP passive DAC for Quantum-2/Spectrum-4 switch-to-switch links (finned to finned) and switch-to-DGX H100 links (finned to flat-top). Source: NVIDIA.
