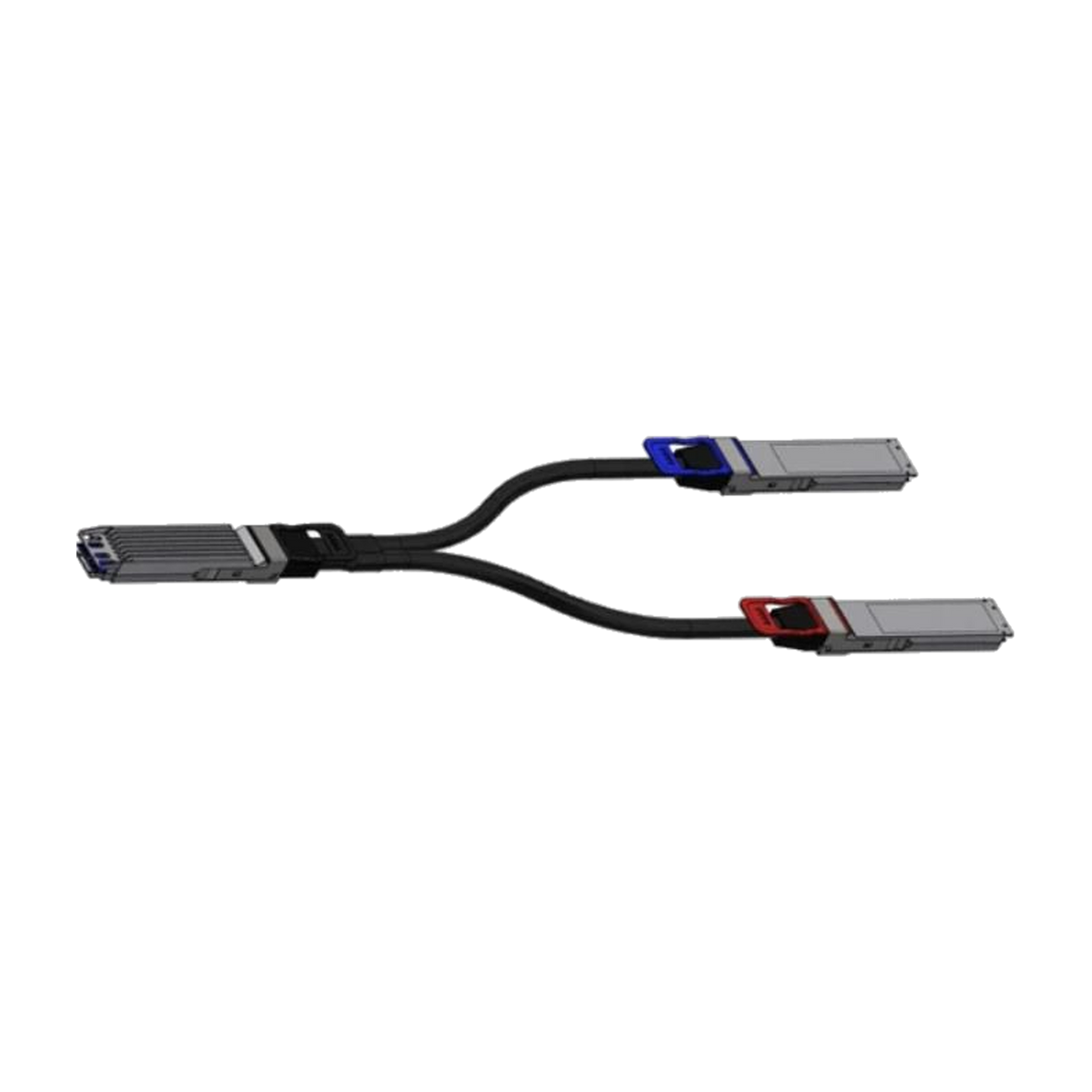

NVIDIA MCP7Y00-N002 – NDR 800G OSFP to 2x 400G OSFP Splitter DAC, 2 m

€1.313,00

Taxes included. Shipping calculated at checkout.

Connectivity 800G OSFP to 2x 400G OSFP
Details 2 m passive copper

NVIDIA MCP7Y00-N002 is a genuine 2 m passive copper splitter linking one twin-port NDR OSFP cage on a Quantum-2 switch to two 400G OSFP ConnectX-7 adapters. It suits InfiniBand NDR clusters that need two servers per switch port.

In stock

Ships across the EU
Secure payment

NVIDIA MCP7Y00-N002 NDR 800G OSFP to 2x 400G OSFP splitter DAC, 2 m

We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.

Brand: NVIDIA

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

01800G to 2x 400G NDREach Quantum-2 switch cage serves two 400G servers, making full use of switch ports.
02OSFP adapter endsBoth split ends are OSFP, matching ConnectX-7 MCX75310AAS-NEAT 400G NDR adapters.
03LSZH jacketLow-smoke zero-halogen jacket for data centres with strict cabling fire-safety rules.
042 m passive copperReaches servers further down the rack from a top-of-rack switch.

In practice

Built for the work.

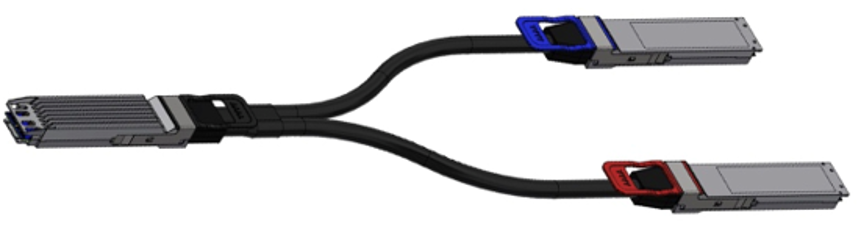

NVIDIA MCP7Y00 passive DAC splitter: twin-port OSFP head splitting into two flat-top OSFP ends

Use case

Two NDR servers from one Quantum-2 port

Build out an InfiniBand NDR fabric for GPU training clusters by connecting two 400G servers to each Quantum-2 switch cage. At 2 m it reaches servers further down the rack from a top-of-rack switch.

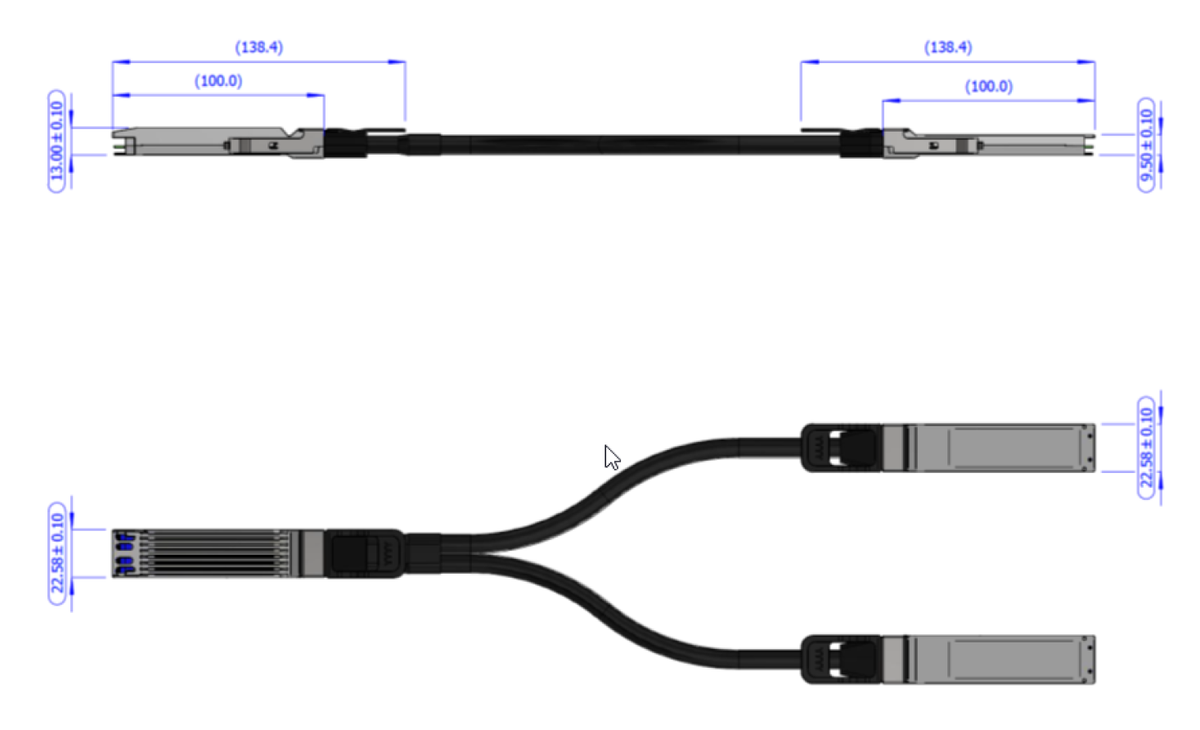

Mechanical drawing of the MCP7Y00 1:2 splitter: top and side views with head and end dimensions

Integration

Quantum-2 QM9700 to ConnectX-7 OSFP

The twin-port OSFP end fits the NVIDIA Quantum-2 QM9700; the two OSFP ends connect to ConnectX-7 MCX75310AAS-NEAT 400G NDR adapters. InfiniBand NDR, 800 Gbit/s total, 2 m, LSZH. Part 980-9I924-00N002.

Video

See it in action.

Performance

The numbers, from the source.

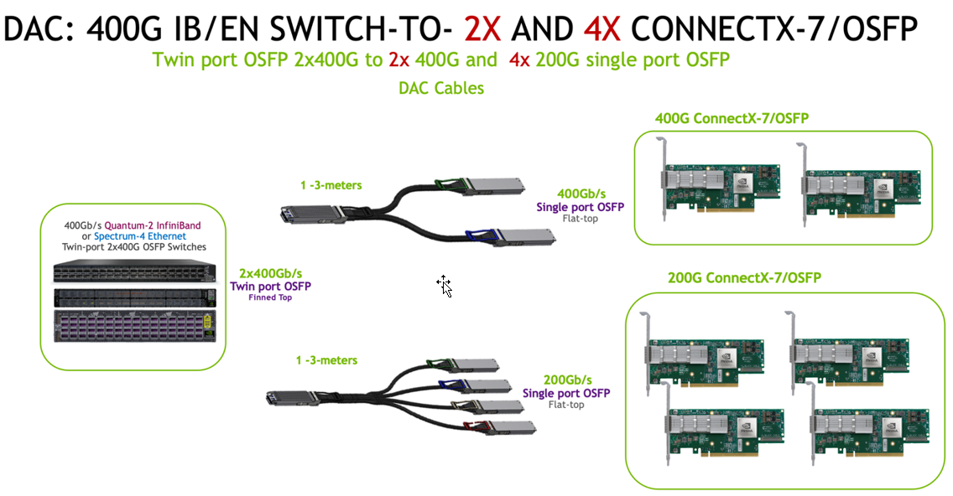

Use case: 1-3 m DAC splitters connect a Quantum-2/Spectrum-4 twin-port OSFP switch to two 400G (MCP7Y00) or four 200G (MCP7Y50) ConnectX-7 OSFP adapters. Source: NVIDIA.
