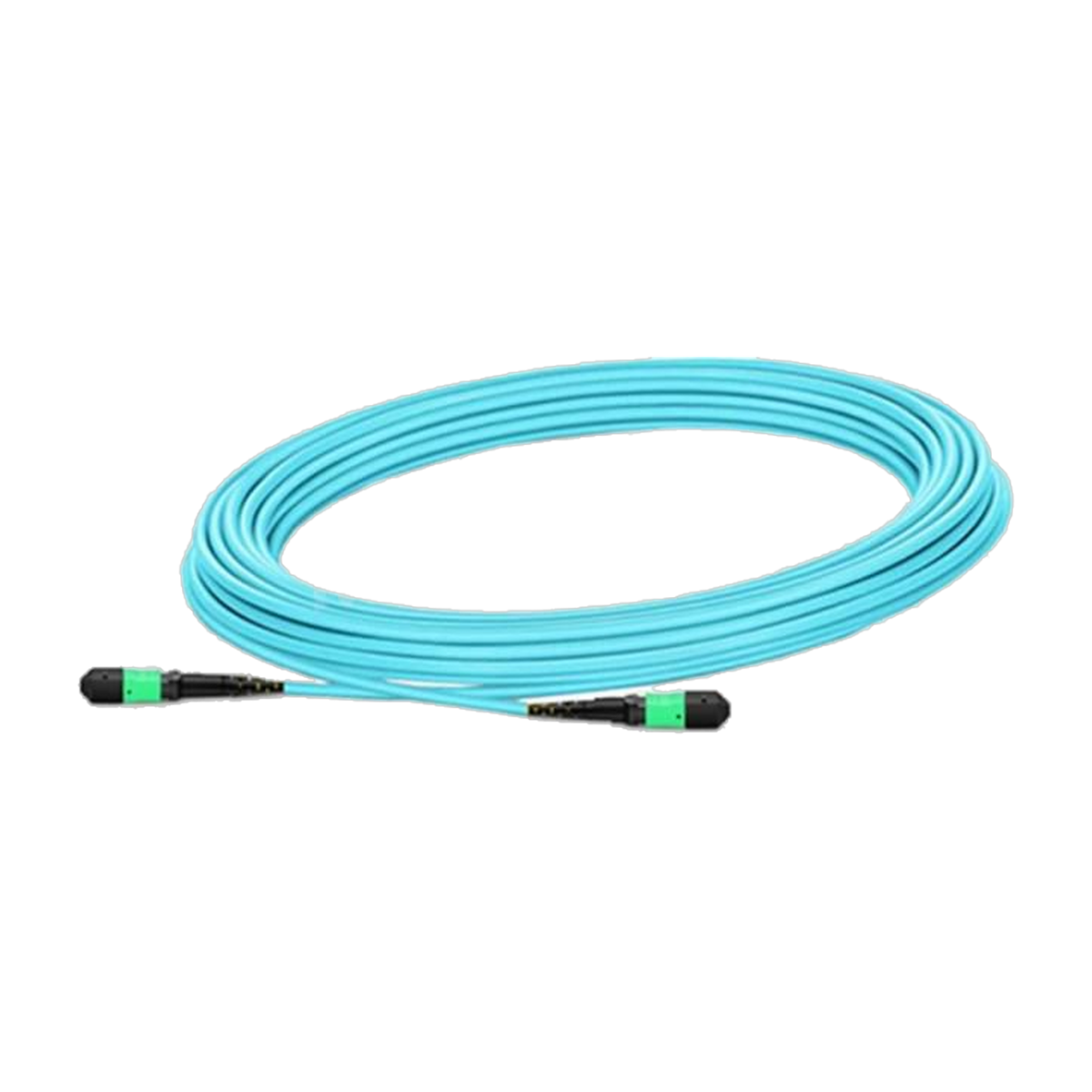

NVIDIA MFP7E10-N030 – MPO-12 APC Multimode Fiber Cable, 30 m

€164,00

Taxes included. Shipping calculated at checkout.

Details MPO-12 APC to MPO-12 APC

NVIDIA MFP7E10-N030 is a 30 m passive OM4 multimode fibre with MPO-12/APC connectors at both ends. It links 400G and 800G multimode OSFP transceivers between switches and servers over distances that copper cannot reach.

7 left

Ships across the EU
Secure payment

NVIDIA MFP7E10-N030 MPO-12 APC multimode fibre cable, 30 m

We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.

Brand: NVIDIA

Manufacturer and safety details for this product are available on request.

Highlights

What's inside.

01MPO-12/APC both endsAngled MPO-12 connectors at each end match the optical ports on NDR SR4 and SR8 optics.
02OM4 multimode fibreSupports multimode NDR links up to 50 m, well beyond the reach of passive copper.
03For 400G SR4 / 800G SR8Works with 800G twin-port SR8 optics in the QM9700 and 400G SR4 optics in ConnectX-7.
0430 m cable lengthCrosses between rows in a data hall, well within OM4 reach.

In practice

Built for the work.

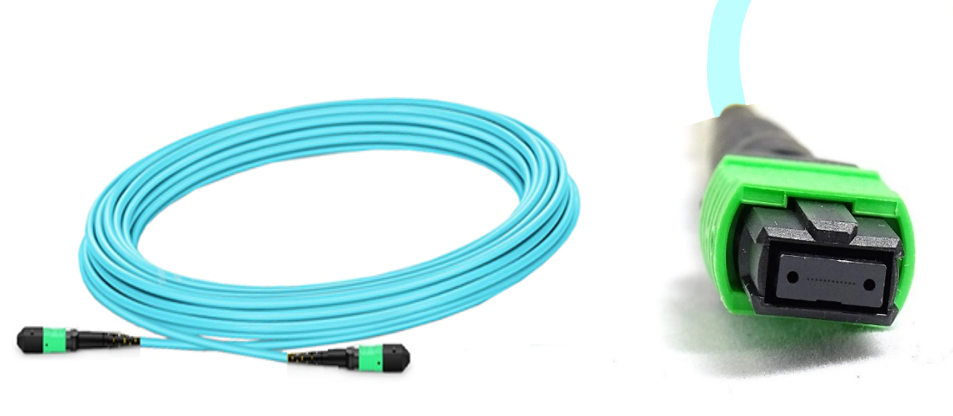

Coiled aqua OM4 multimode fibre with a close-up of the green MPO-12/APC connector

Use case

Link NDR switches and servers over fibre

Connect Quantum-2 switches to ConnectX-7 servers, or switch to switch, when racks sit too far apart for copper DACs. At 30 m it crosses between rows in a data hall while staying well within OM4 reach.

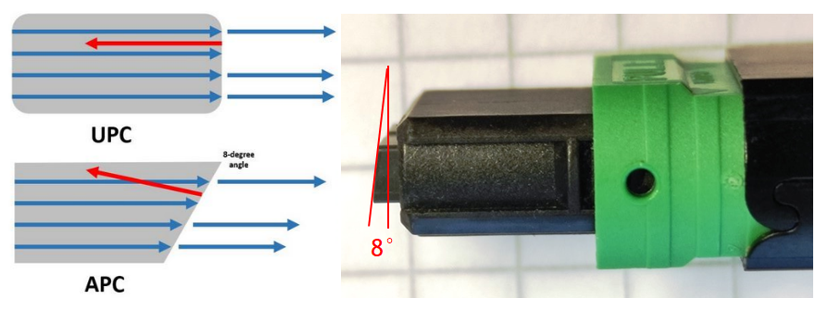

UPC vs APC connector diagram and macro photo of the 8-degree angled APC ferrule

Integration

Pairs with NVIDIA MMA4Z00-NS optics

Connects OSFP transceivers MMA4Z00-NS (800G twin-port SR8 in the QM9700) and MMA4Z00-NS400 (400G SR4 in ConnectX-7), including compatible MMA4Z00-NS modules. MPO-12/APC to MPO-12/APC, OM4, aqua, 30 m. Part 980-9I570-00N030.

Video

See it in action.

Performance

The numbers, from the source.

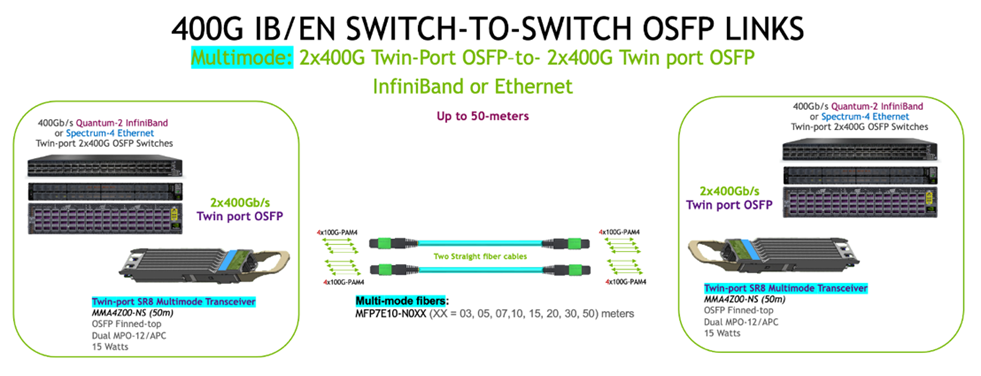

Topology: 400G InfiniBand/Ethernet switch-to-switch links with twin-port SR8 OSFP transceivers in Quantum-2/Spectrum-4 switches joined by two MFP7E10 multimode fibres. Source: NVIDIA.
