Small Team 25G Network Kit – MikroTik CRS510 + 4x 25G and 1x 100G DAC
ai StoreLabs
Small Team 25G Network Kit – MikroTik CRS510 + 4x 25G and 1x 100G DAC

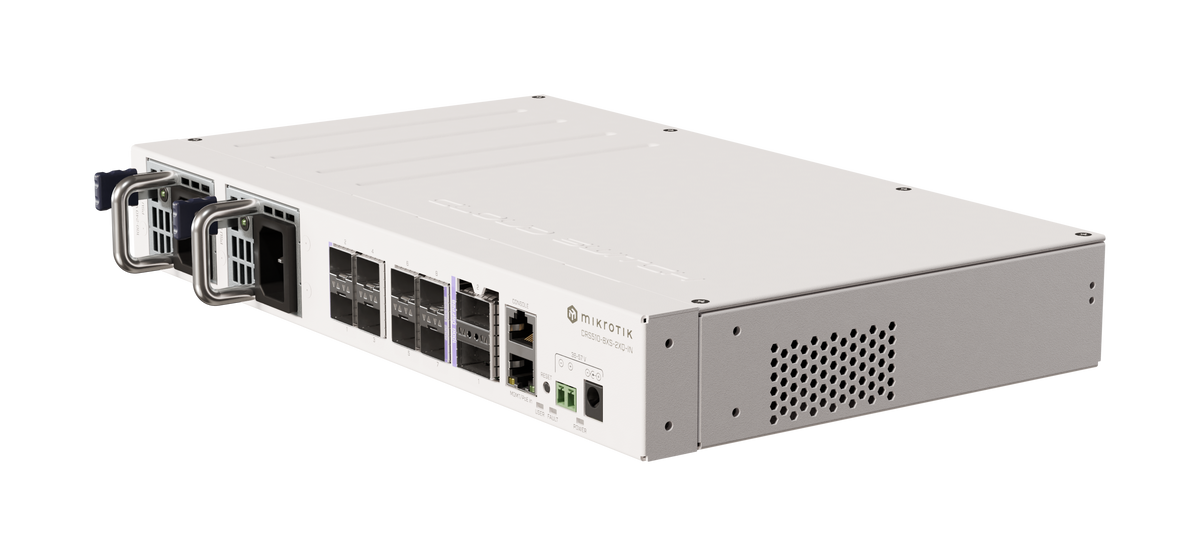

- Connectivity 1x MikroTik CRS510-8XS-2XQ-IN
A compact 25G network for a small AI team, built around the MikroTik CRS510 with eight SFP28 and two QSFP28 ports. Four 25G DAC cables and one 100G DAC are included, connecting four workstations and a NAS or server, with room to grow to eight 25G machines. Dual hot-swap power supplies add resilience.
- Ships across the EU
- Secure payment
In the box
- 1× MikroTik CRS510-8XS-2XQ-IN, 8× 25G SFP28 + 2× 100G QSFP28 switch
- 4× MikroTik XS+DA0003 SFP28 25G DAC cable, 3 m
- 1× MikroTik XQ+DA0003 QSFP28 100G DAC cable, 3 m
Shipping
We ship from Belgium to all EU countries. Delivery options, costs and times for your country are shown at checkout.
Manufacturer and safety
- Brand
- ai StoreLabs
Manufacturer and safety details for this product are available on request.
Highlights
What's inside.
The specs that decide what you can run, straight from the manufacturer's data sheet.
- 018× 25G + 2× 100G switchThe MikroTik CRS510-8XS-2XQ-IN combines SFP28 access ports with QSFP28 uplinks.
- 024× 25G DAC, 3 mFour SFP28 direct-attach cables connect four workstations straight out of the box.
- 03100G uplink for storageA 3 m QSFP28 DAC links a NAS or server at 100G, with a second QSFP28 port free.
- 04Dual hot-swap PSUsTwo hot-swappable power supplies keep the network running if one unit fails.
In practice
Built for the work.
Use case
A 25G network that grows with your team
Start with four workstations at 25G and a shared NAS or server at 100G, then add up to four more 25G machines on the free SFP28 ports. Our guide on networking a small AI lab with 25G and 100G explains the layout and setup.
Integration
SFP28 access with QSFP28 uplinks

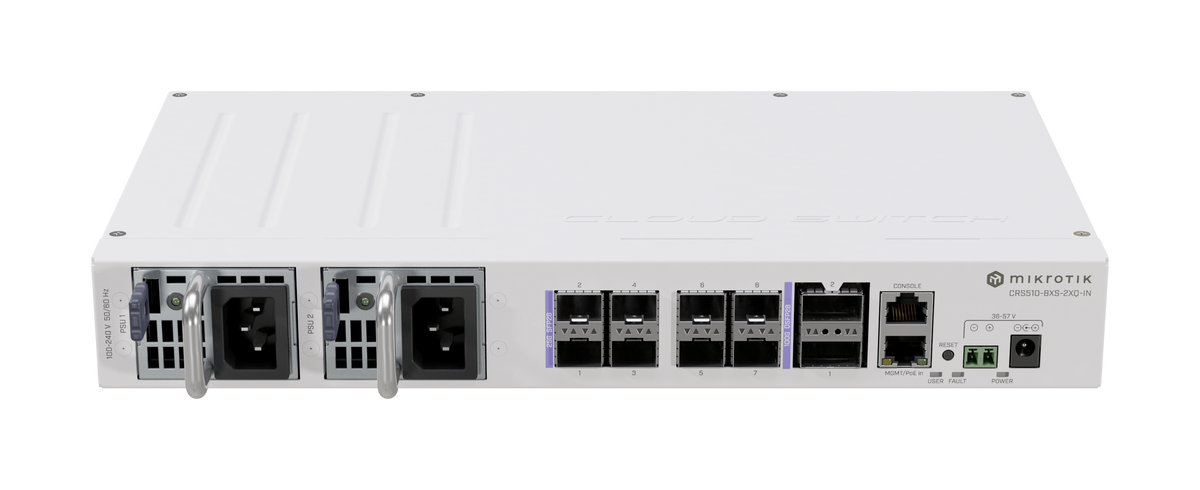

The CRS510-8XS-2XQ-IN provides eight 25G SFP28 and two 100G QSFP28 ports. Four XS+DA0003 25G DAC cables and one XQ+DA0003 100G DAC, all 3 m, are included, leaving four SFP28 ports and one QSFP28 port free for expansion.
Video
See it in action.
Performance
The numbers, from the source.
Charts and diagrams published by the manufacturer.
-
Block diagram: 8x 25G SFP28 and 2x 100G QSFP28 on a non-blocking wire-speed Marvell 98DX4310 switch chip, redundant hot-swap PSUs plus PoE-in and DC inputs. Source: MikroTik.
Specifications
Every detail, on paper.
01Key specifications
- Connectivity
- 1x MikroTik CRS510-8XS-2XQ-IN, 8x 25G SFP28 + 2x 100G QSFP28 switch
- Connectivity
- 4x MikroTik XS+DA0003 SFP28 25G DAC cable, 3 m
- Connectivity
- 1x MikroTik XQ+DA0003 QSFP28 100G DAC cable, 3 m
